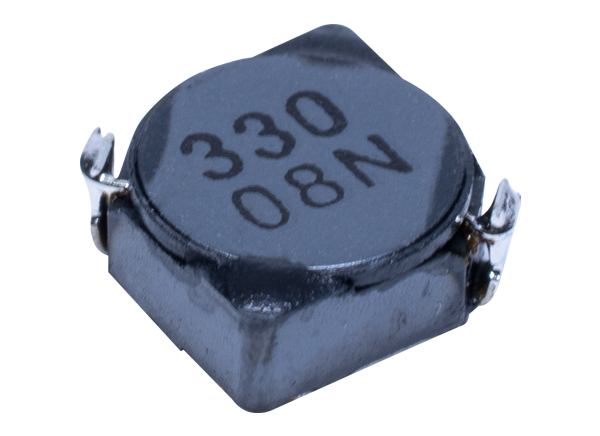

Sumida CDRH Automotive Power Inductors
Sumida CDRH Automotive Power Inductors feature magnetically shielded construction, storage temperature ranges from -40°C to +85°C and -40°C to +125°C, and operating temperature ranges from -40°C to +125°C and -40°C to +155°C (including coil's self heat). Sumida CDRH Automotive Power Inductors are ideal for automotive applications, including air bags, car audio, and auto navigation.
Features
- Magnetically shielded construction
- -40°C to +85°C and -40°C to +125°C storage temperature ranges
- -40°C to +125°C and -40°C to +155°C (including coil's self-heat) operating temperature ranges
- RoHS compliant and halogen free
- Qualification to AEC-Q200
Applications
- Air bags
- Car audio
- Auto navigation
Specifications
- 33nH to 1mH inductance
- 140mA to 9.8A maximum DC current
- 120µΩ to 660Ω maximum DC resistance
- 2.1A to 4.45A saturation current
