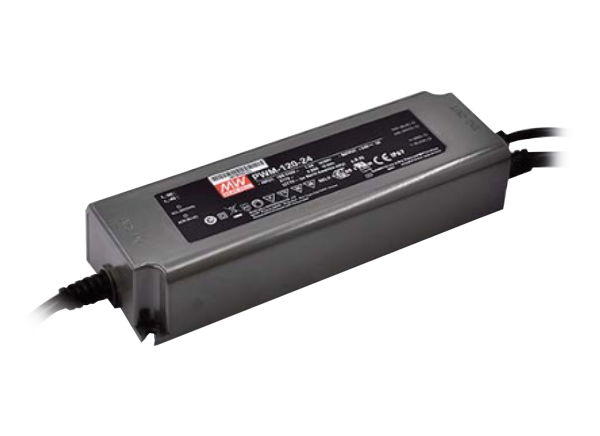

MEAN WELL PWM-KN Series KNX LED Drivers

MEAN WELL PWM-60/120KN Series KNX LED Drivers feature a constant voltage mode with pulse-duration modulation (PWM) style output. The AC/DC drivers can maintain color temperature and brightness homogeneity when driving many LED strips. Also, a KNX interface avoids having to use the complicated KNX-DALI gateway. The units operate from 90V_AC to 305V_AC and are available in 12V and 24V output models. PWM-KN features include high efficiency of up to 90% and a fanless design that allows for a case temperature of -40°C to +90°C under free air convection. A minimal dimming level low to 0.5% is suitable for low-light-level applications. An output frequency is changeable up to 4KHz and complaint to IEEE 1789-2015. The device provides a solution for health concerns resulting from light flickering.
