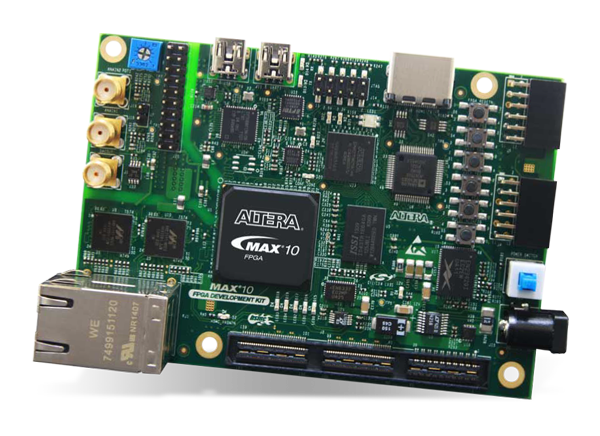

Intel DK-DEV-10M50A MAX 10 FPGA Development Board

Intel DK-DEV-10M50A MAX 10 FPGA development board is used in evaluating the performance and features of the Intel MAX 10 device. The board may be programmed using the embedded USB-Blaster II or an optional JTAG 10-pin header.

The DK-DEV-10M50A power supply features Enpirion DC-DC converters. Interfaces include two-gigabit ethernet ports, mini-USB 2.0 UART, HDMI, a universal high-speed mezzanine card (HSMC) connector, and two 12-pin Digilent Pmod compatible connectors.

Features

MAX 10 FPGA (10M50D, dual supply, F484 package)
Enpirion® EN2342QI 4A PowerSoC voltage-mode synchronous step-down converter with integrated inductor
Enpirion EN6337QI 3A high-efficiency PowerSoC DC-DC step-down converters with integrated inductor
Enpirion EP5358xUI 600mA PowerSoC DC-DC step-down converters with integrated inductor
MAX II CPLD - EPM1270M256C4N (on-board USB-Blaster ™ II)
Programming and configuration
- Embedded USB-Blaster II (JTAG)
- Optional JTAG direct via a 10-pin header
Memory devices
- 64-Mx16 1 Gb DDR3 SDRAM with soft memory controller
- 128-Mx8 1 Gb DDR3 SDRAM with soft memory controller
- 512-Mb quad serial peripheral interface (quad SPI) Flash

Communication ports
- Two gigabit Ethernet (GbE) RJ-45 ports
- Ethernet Port A (bottom)
- Ethernet Port B (top)
- One mini-USB2.0 UART
- One high-definition multimedia interface (HDMI) video output
- One universal high-speed mezzanine card (HSMC) connector
- Two 12-pin Digilent Pmod™ compatible connectors
Analog
- Two MAX 10 FPGA analog-to-digital converter (ADC) SMA inputs
- 2x10 ADC header
- Potentiometer input to ADC
- One external 16-bit digital-to-analog converter (DAC) device with SMA output
Clocking
- 25MHz single-ended, external oscillator clock source
- Silicon Labs clock generator with programmable frequency GUI
