Broadcom ASCB-UTC2 2828 Tricolor PLCC-6 LED

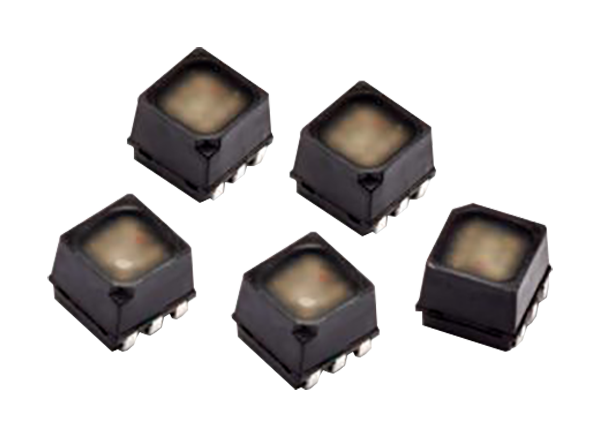

Broadcom ASCB-UTC2 2828 Tricolor PLCC-6 LED offers individually addressable pins for each color in a small 2.8mm x 2.8mm package. The ASCB-UTC2 LED features a full black body appearance enhancing the contrast of the small pitch display.
The Broadcom ASCB-UTC2 2828 Tricolor PLCC-6 LEDs facilitate easy pick-and-place assembly, packed in tape and reel form. The ASCB-UTC2 is designed for use in full-color display applications.
Features
- PLCC-6 package full black body
- Short leads for better potting process
- Diffused encapsulation
- Compatible with the reflow soldering process
- MSL 5a
Applications
- Full color, small pitch displays
Specifications
- Luminous intensity (Typical)
- Red: 530mcd
- Green: 1000mcd
- Blue: 210mcd
- Dominant wavelength (Typical)
- Red: 621nm
- Green: 522nm
- Blue: 470nm
- Peak wavelength
- Red: 628nm
- Green: 516nm
- Blue: 466nm
- 105° viewing angle
- 100mA peak forward current
- DC forward current
- Red: 50mA
- Green: 30mA
- Blue: 30mA
- Power dissipation
- Red: 120mW
- Green: 102mW
- Blue: 102mW
- +105°C LED junction temperature
- -40°C to +85°C operating temperature range
- 2.8mm x 2.8mm x 2.4mm package
