B+B SmartWorx BB-EIRSP1 Industrial Ethernet Surge Suppressor

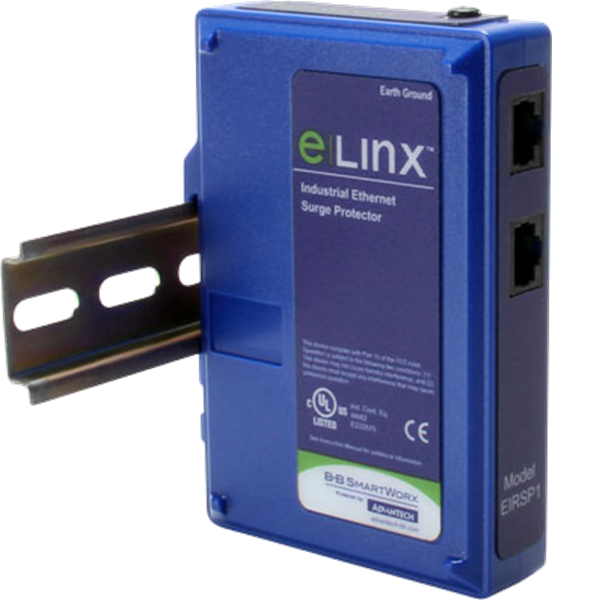

B+B SmartWorx BB-EIRSP1 Industrial Ethernet Surge Suppressor Model is designed to protect all eight lines of a standard Cat5e Ethernet cable. The BB-EIRSP1 is compatible with 10/100BaseT networks and 802.11af (Modes A & B) Power-over-Ethernet ("PoE"). Mode A applies power to the data pairs, pins 1/2 and 3/6. Mode B applies power to the unused pairs, pins 4/5 and 7/8. Network connections are made using RJ-45 connectors. Grounding is accomplished using a ground lug which accepts 14AWG to 22AWG wire. Stranded or braided cable is recommended with a 1 meter maximum run to Earth Ground.

Features

Single-stage surge protection for all eight Cat5e lines
10/100 BaseT Ethernet, RJ45 connectors
Wide operating temperature (-40°C to +80°C)

DIN rail mount IP30 enclosure
Power-over-Ethernet (PoE) compatible
UL Listed

Applications

Data communications
Highly exposed Ethernet
Telecommunication and indoor industrial installations

Surveillance cameras
Remote power and communication

Specifications

Network
- Ethernet Connector:RJ45 (In and Out)
- Protocols: PoE 802.11af (Power-over-Ethernet) (Modes A & B)
- Speed: 10/100 BaseT
Surge Protection
- Lines Protected: All eight (8) RJ45 (CAT5)
- Clamping Voltage: 60V
- Peak Pulse Power: 600W
- Peak Surge Current: 1000A
- Capacitance: <50pF
Environmental
- Response Time: <5ns
- Operating Temperature: -40°C to +80°C (-40°F to +176°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Operating Humidity: 0% to 95%, non-condensing
Physical
- Enclosure: Plastic, IP30
- Mounting: DIN Rail
- Dimensions: 3.0cm x 11.9cm x 8.6cm (1.2” x 4.7” x 3.4”)

Wiring
- Wire Type: Copper wire only. One conductor per terminal.
- Wire Range: 14AWG to 22AWG
- Tightening Torque: 1.7lb per inch
- Wire Temperature Rating: 105°C, max. (sized for 60 °C ampacity)
Meantime Between Failure (MTBF)
- MTBF: 1275588 hours
- MTBF Calc. Method: MIL117F Parts Count Reliability Prediction
Certifications
- CE, FCC, UL Listed
- CE - Directives
  - 2014/30/EU Electromagnetic Compatibility Directive
  - 2011/65/EU amended by (EU) 2015/863 Reduction of
  - Hazardous Substances Directive (RoHS)
  - 2012/19/EU Waste Electrical and Electronic Equipment (WEEE)
- Ce - Standards
  - EMC:
    - EN 55032:2015 Class A Electromagnetic compatibility of multimedia equipment – Emission requirements
    - EN 55024:2010 Information Technology Equipment Immunity Characteristics – Limits and methods of measurement
