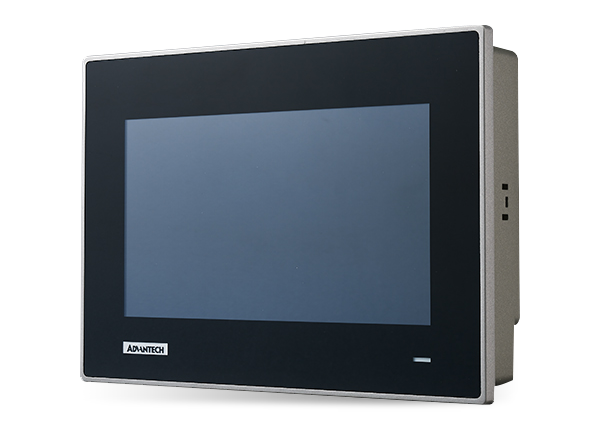

Advantech TPC-71W 7" Touch Panel Computers

Advantech TPC-71W 7" Touch Panel Computers are cost-efficient and open-platform panel PCs. These PCs feature a 7” true-flat display with P-CAP multi-touch and NXP® Arm® Cortex® -A9 I.MX 6 dual/quad-core processor to deliver powerful computing. The Advantech TPC-71W panel computers offer up to 2GB DDR3L RAM, 1MB FRAM backup memory for unexpected power interruptions, and 8GB eMMC storage on board. Additionally, these touch panel PCs exhibit 10/100/1000 Mbps LAN with IEEE 802.3at PoE-PD and optional NFC and mPCIe expansion modules. The TPC-71W computers support various operating systems, including Linux Yocto, Linux Ubuntu with full QT graphics, and Android to ensure easy deployment for diverse applications. The inclusion of VNC Tools and browsers enable rapid Web application development and easy configuration
Advantech TPC-71W 7


  • NXP ARM Cortex-A9 i.MX6 dual/quad-core processor
  • 7" 16:9 WSVGA LCD with multi-touch P-CAP control and true-flat IP66-rated front panel
  • Up to 2GB DDR3L RAM and 8GB eMMC storage onboard
  • 10/100/1000Mbps LAN with IEEE 802.3at PoE-PD support
  • 1MB FRAM backup memory for unexpected power interruptions
  • Embedded browser and VNC tool for rapid Web App development
  • Serial port with 120Ω termination resistor that supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1Mb/sec
  • Supports Linux Yocto, Linux Ubuntu, and Android
  • Optional NFC and mPCIe expansion modules
  • Compatible with VESA and panel mounting


  • General
    • CE, BSMI, CCC, UL, FCC Class A certifications
    • Dimensions (W x H x D): 205mm x 146.92mm x 46mm (8.07in x 5.78in x 1.81in)
    • Cutout Dimensions 192mm x 138.5mm (7.56in x 5.45in)
    • OS Support: Linux Yocto 2.1, Linux Ubuntu 16.04, and Android 6
    • 24VDC ±20% power input
    • 9W power consumption (typical)
    • Unit Enclosure Die-cast aluminum alloy front bezel PC + ABS rear housing
    • Mount options: Panel and VESA
    • Weight (Net) 1.2kg (2.65lb)
  • System Kernel
    • CPU NXP ARM Cortex-A9 i.MX6 dual/quad-core 1.0GHz processor
    • Backup memory: FRAM 1MB
    • Memory:
      • Dual-core - 1GB DDR3L RAM
      • Quad-core - 2GB DDR3L RAM
    • Storage 8GB eMMC onboard
  • Communication Interface
    • Serial port: 1 x DB9 selectable mode for RS-232/485 and CAN 2.0 B
    • LAN:
      • 1 x RJ45 with 10/100/1000Mbps LAN supporting
      • IEEE 802.3af PoE /802.3at PoE+ PD standard
    • Others:
      • 1 x USB 2.0 Type-B client
      • 2 x USB 2.0 Type-A host
      • 1 x Micro SD
  • LCD Panel
    • WSVGA TFT LCD panel type
    • 7in (177.8mm) panel size
    • 1024 x 600 maximum resolution
    • 16.7M maximum colors
    • 400cd/m2 luminance
    • 170/170 viewing angle (H/V)
    • 50000hrs backlight life
    • Anti-glare treatment
    • 800:1 contrast ratio
    • Front-panel LED indicator: Yes
  • Touchscreen
    • Touch-Points: 10 points
    • Light: Transmission above 85%
    • ≥7H pencil hardness
    • Projected capacitive (P-CAP) touch
  • Environment
    • -20°C to +60°C operating temperature range
    • -30°C to +70°C storage temperature range
    • Humidity: 10% to 90% RH @ 40°C, non-condensing
    • IP66-rated front panel
    • 2Grms random vibration (5Hz to 500Hz) during operation (compliant with IEC60068-2-64)
    • 10G shock under 11ms operation (compliant with IEC60068-2-27)


Mechanical Drawing - Advantech TPC-71W 7

Working Components of Industry 4.0/5.0

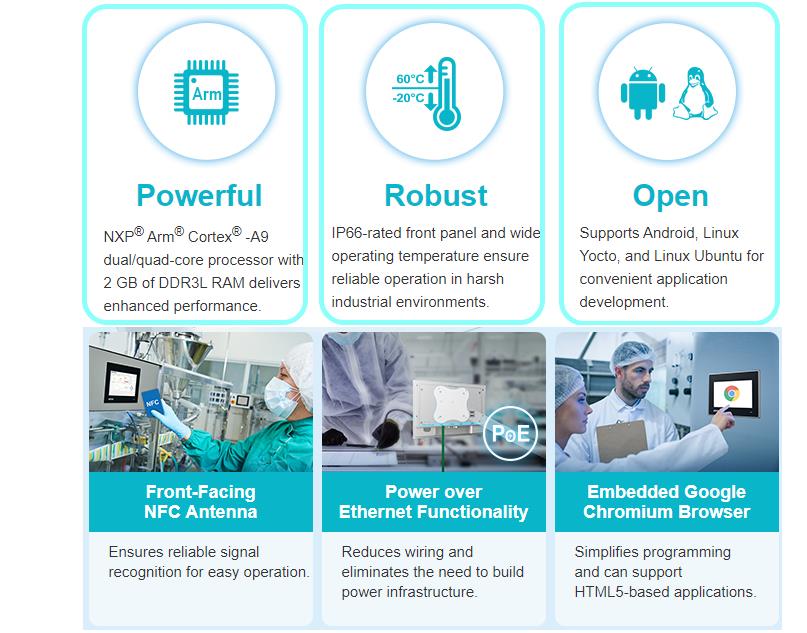

Infographic - Advantech TPC-71W 7
