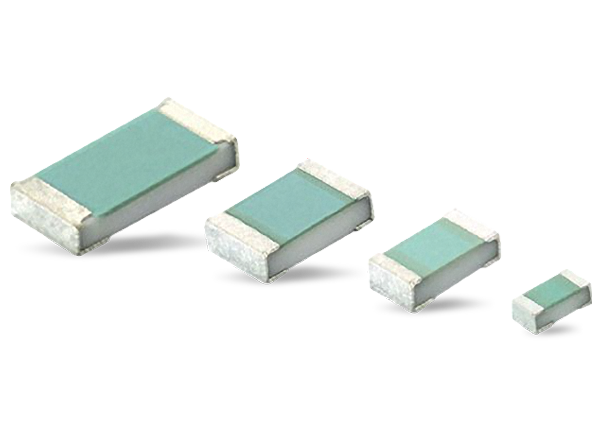

Vishay / Beyschlag MCx Precision Thin Film Chip Resistors
Vishay MCx Precision Thin Film Chip Resistors feature TCR as low as ±10ppm/K, tolerance down to ±0.1%, and an operating temperature range of -10°C to +85°C. These devices meet EN 140401-801 standards. Vishay MCx Precision Thin Film Chip Resistors are a green product and support lead-free soldering. Typical applications include automotive, industrial, telecommunication, medical equipment, and precision test and measuring equipment.
Features
- EN 140401-801 approved
- TCR as low as ±10ppm/K
- Tolerance down to ±0.1%
- -10°C to +85°C operating temperature range
- Green product
- Supports lead-free soldering
Applications
- Automotive
- Industrial
- Telecommunication
- Medical equipment
- Precision test and measuring equipment
Accessories
Vishay / Beyschlag LCT Resistor Sample Kits
Include AEC-Q200 qualified thin-film resistors with a resistance range up to 511kΩ.
Related Resistors
Vishay MCx Thin Film Resistors
A variety of uses, including automotive, industrial, telecommunications, and medical.
