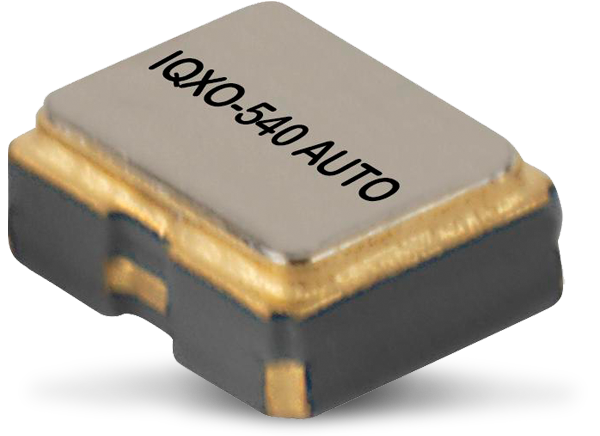

IQD IQXO-540 AUTO Crystal Clock Oscillators

IQD IQXO-540 AUTO Crystal Clock Oscillators feature an ultra-miniature, 2.0mm x 1.6mm x 0.8mm, ceramic sealed package and are ideal for industrial and automotive applications. The AEC-Q200 qualified IQXO-540 AUTO components are available in a frequency range of 4.0MHz to 50MHz and operates at 3.3V. The oscillators feature stabilities down to ±25ppm within -40°C to +85°C or ±50ppm over the extended temperature range of -40°C to 125°C.


  • 4.0MHz to 50.0MHz frequency range
  • ±25.00ppm to ±100.00ppm frequency stability
  • ±5ppm max aging per year at +25°C
  • 3.3V ±10% supply voltage
  • CMOS output compatibility
  • 15pF drive capability
  • 5ns rise/fall time
  • 5mA to 8mA current draw
  • Standby currents
    • 10μA maximum within -40°C to +85°C
    • 20μA maximum within -40°C to +125°C
  • AEC-Q200 qualified
  • RoHS and REACH compliant


  • ABS
  • Airbag sensors
  • Drive controls
  • Keyless entry
  • Navigation
  • Security systems
  • Solar panels
  • Tire Pressure Monitoring Systems (TPMS)
  • Receivers
  • Wi-Fi and WiMax
