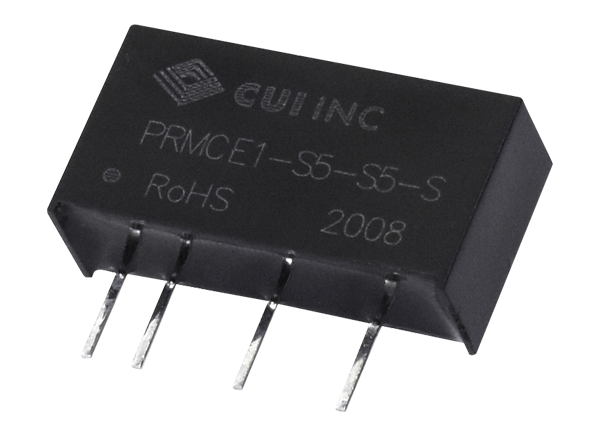

CUI Inc PRMCE1-S 1W DC-DC Converters
CUI Inc PRMCE1-S 1W DC-DC Converters are compact, regulated converters that provide 1W output power over a -40°C to +85°C temperature range. These DC-DC converters feature a 1:1 input, continuous short-circuit protection, and 3000VDC isolation. The series provides a rugged, IEC 62368-1-certified solution for sensitive applications, including industrial control and mixed digital/analog systems. The PRMCE1-S offers up to 73% efficiency and requires no heat sink, making it ideal for applications where board space is at a premium and maximizing energy efficiency is a concern.
Features
- 1W isolated output
- 3000VDC isolation
- Compact (19.65mm length x 6mm width x 10.16mm height) SIP package
- Continuous short-circuit protection
- No-load input current as low as 5mA
- -40°C to +85°C operating temperature range
- High efficiency up to 73%
- UL62368 / EN62368 / IEC62368 approvals
Applications
- Industrial control
- Mixed digital / analog systems
