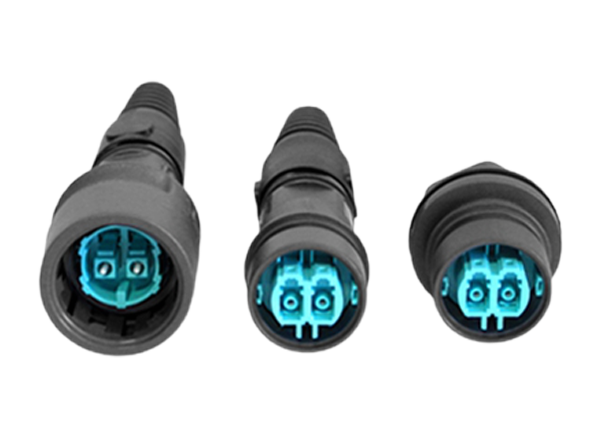

Bulgin 6000 Duplex LC Fiber Optic Buccaneer Connectors

Bulgin 6000 Duplex LC Fiber Optic Buccaneer Connectors provide two-way signal transmission with a Duplex LC-Type interface in Flex, Flex In-Line, and Rear Panel mounting styles. A secure, 30° twist, tamperproof lock prevents accidental un-mating. When mated, the connectors provide IP66, IP68, and IP69K ratings. Constructed of an all-plastic self-extinguishing material body, the fiber optic data connectors are UL 94V-0 rated, UV stable, halogen-free, and lightweight. The Bulgin 6000 Duplex LC Fiber Optic Buccaneer connectors are suitable for long-term outdoor use.


  • Sealed to IP66, IP68, and IP69K when mated
  • IP68 rating tested at 1.054kg/cm2 (15lb/in2) 10m depth for two weeks
  • Duplex LC-Type interface
  • 0S1, 0M1, and 0M3 cabled versions
  • Cable range from 5M to 450M
  • 32.0mm diameter over coupling ring
  • Flex, Flex-in-Line, and Rear Panel mounting styles
  • Secure, proven locking system
  • 30° twist locking, tamperproof lock prevents accidental un-mating
  • All plastic body version: UL94-V0 rated, UV stable, halogen-free, light-weight, self-extinguishing material suitable for long-term use outdoors
  • Sealing caps available to maintain IP68 rating
  • EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1


  • Materials
    • Polyamide body moldings
    • UL 94V-0 flammability rating
    • UV resistance to EN 500021:1999
    • Polyethylene cable outer jacket for UV and weather resistance
    • Silicone O-rings
    • Silicone panel sealing O-ring
  • Mechanical
    • 1.0NM to 1.1NM (91lb/in) panel-mount nut
    • -25°C to +70°C operating temperature
  • Optical
    • Insertion loss of 0.2db maximum single-mode, 0.1db average single-mode
  • RoHS compliant
