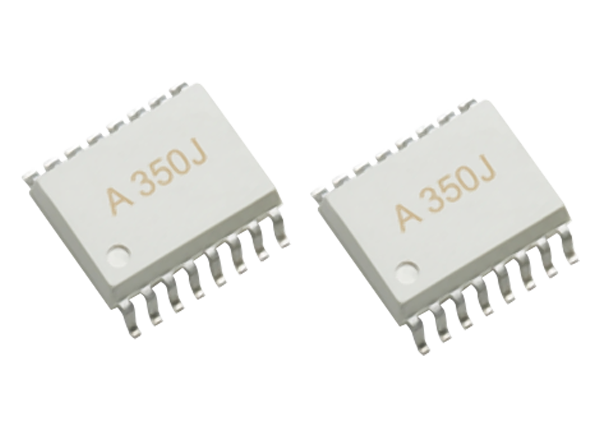

Broadcom ACPL-350J 3A Gate Driver Optocouplers with overcurrent sensing and FAULT signal exhibits high peak output current and wide operating voltage range. These optocouplers feature a fast propagation delay with excellent timing skew performance and a dual output drive to control turning on and off time. The ACPL-350J optocouplers provide IGBT/MOSFET with overcurrent protection and FAULT signal for external isolated feedback. These gate driver optocouplers operate from -40°C to 105°C temperature range and come in a compact, surface-mountable SO-16 package. The ACPL-350J optocouplers provide reinforced insulation certified for safety regulatory IEC/EN/DIN, UL, and CSA. Typical applications include industrial drives and inverters, renewable energy inverters, and switching power supplies.
ACPL-350J 3A maximum peak output current
150ns maximum propagation delay
Dual output drive to control turning on and off time
Overcurrent detection with configurable "soft" shutdown
FAULT signal for external isolated feedback
Under-Voltage Lockout (UVLO) with hysteresis
100kV/µs minimum Common-Mode Rejection (CMR) at VCM = 1500V
