Bourns SRF3225AB & SRF3225TAC Common Mode Chip Inductors

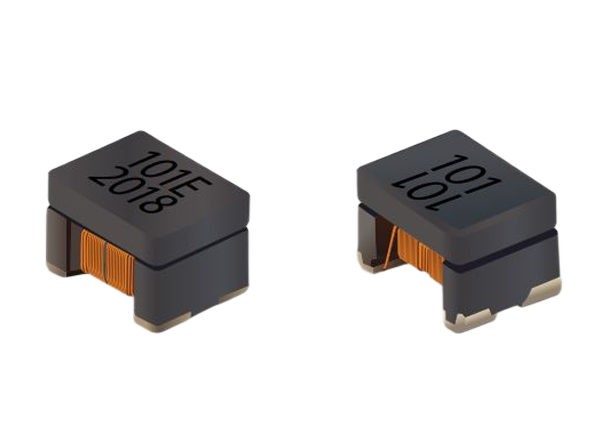

Bourns SRF3225AB and SRF3225TAC 1210 Automotive-Grade Common Mode Chip Inductors are constructed with a ferrite core and are bifilar-wound. These design features allow Bourns SRF3225 Common Mode Chip Inductors to deliver a compact size and shielded construction for low radiation and high impedance over a broad frequency range for EMI suppression. SRF3225AB and SRF3225TAC are AEC-Q200 compliant for high-reliability and high-durability applications. SRF3225AB provides noise suppression in 2-wire UTP cable automotive audio bus systems. SRF3225TAC is designed for common-mode noise suppression for classic CAN and higher data rate CAN-FD Class II applications.

Features

  • Bifilar-wound
  • Shielded construction for low radiation
  • High impedance, wide EMI suppression frequency range
  • AEC-Q200 compliant
  • Meets IEC 62228-3 standard (SRF3225TAC-101Y)
  • RoHS compliant and Halogen-free

Applications

  • Noise filters
  • EMI suppression for data and signal lines
  • 2-wire UTP cable automotive audio bus (SRF3225AB)
  • CAN and CAN-FD Class II (SRF3225TAC)
  • 100Base-T1 Ethernet

Specifications

  • 3.2mm x 2.5mm x 2.5mm size
  • Inductance
    • 100µH (SRF3225AB)
    • 11µH to 100µH (SRF3225TAC)
  • Impedance at 10MHz
    • 5500Ω typical (SRF3225AB)
    • 550Ω to 5100Ω typical (SRF3225TAC)
  • Rated current
    • 0.1A (SRF3225AB)
    • 0.15A to 0.3A (SRF3225TAC)
  • Operating temperature range
    • -40°C to +125°C (SRF3225AB)
    • -55°C to +150°C (SRF3225TAC)

Datasheets

Publicado: 2021-02-23 | Actualizado: 2022-03-11
