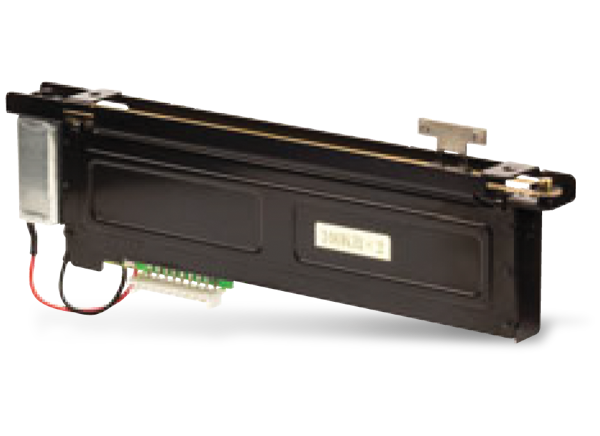

Bourns PSP Motorized Slide Potentiometers

Bourns PSP Motorized Master Slide Potentiometers feature an extra-long life element and a touch-sense lever. The PSP Motorized Master Slide Potentiometers provide a 10KΩ to 100KΩ standard resistance range, ±20% standard resistance tolerance, and 1Ω maximum end resistance. These potentiometers offer an assortment of resistance tapers, 60mm or 100mm travel length, and a snap-in connector. The PSP series is ideal for use in audio mixing consoles, broadcast mixing consoles, and light mixing consoles.


  • Extra-long life element
  • Assortment of resistance tapers
  • Touch sense lever
  • Snap-in connector


  • Audio mixing consoles
  • Broadcast mixing consoles
  • Light mixing consoles


  • 60mm or 100mm travel length
  • 10KΩ to 100KΩ resistance range
  • ±20% resistance tolerance
  • 1Ω maximum end resistance
  • 100MΩ minimum insulation resistance at 500VDC
  • 1000VAC dielectric withstanding voltage
  • Power ratings
    • 0.5W linear
    • 0.25W audio
  • 60mV maximum slider noise
  • 10Ω maximum touch sense track conductive resistance, snap-in connector
  • -10°C to +70°C operating temperature range
  • 1,000,000 operational life cycles
  • Motor drive
    • 10VDC rated voltage
    • 6VDC to 44VDC operating supply voltage
    • 800mA maximum current
    • 20mm/0.1 seconds lever speed at 10VDC


Schematic - Bourns PSP Motorized Slide Potentiometers
