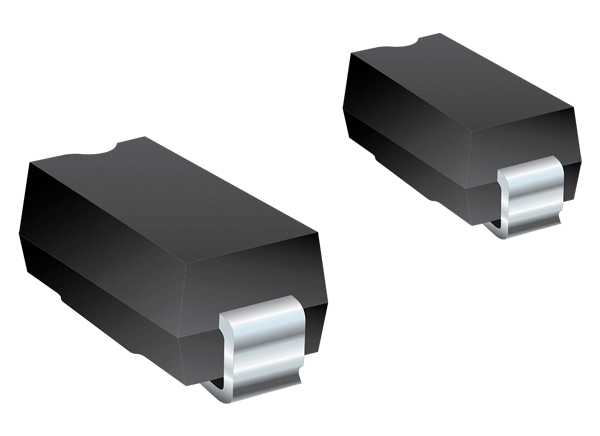

Bourns P6SMB-Q Transient Voltage Suppression Diodes are packaged in a compact DO-214AA (SMB) size format and are ideal for surge and ESD protection applications. The P6SMB-Q diodes offer breakdown voltages from 6.8V up to 250V within a -55°C to +150°C temperature range. Typical fast response times are less than 1.0 picosecond for unidirectional devices and less than 5.0 picoseconds for bidirectional devices from 0V to the minimum breakdown voltage.
Surface mount DO-214AA (SMB) package
Halogen-free and RoHS compliant
Unidirectional or bidirectional
ESD classification 3B (HBM)
Protection of power buses
Protection of I/O interfaces
Overvoltage transient protection
6.8V to 250V breakdown voltage
600W power dissipation
3.5V forward voltage
-55°C to +150°C temperature range
Molded plastic case, UL94V-0
