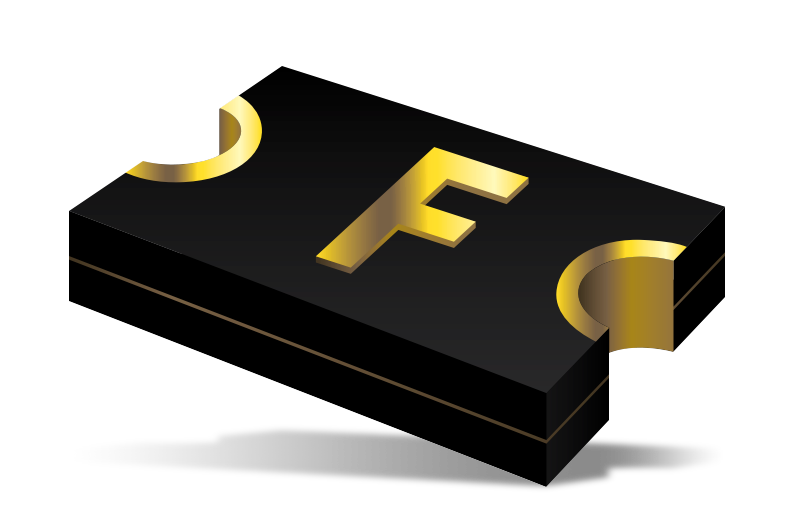

Bourns MF-NSMF Multifuse® AEC-Q200 PTC Resettable Fuses
Bourns MF-NSMF Multifuse® AEC-Q200 PTC Resettable Fuses are AEC-Q200 and RoHS compliant and provide a symmetrical design. Bourns MF-NSMF PTC Resettable Fuses feature a small size (1206 footprint) that results in a fast time to react to fault events. These Multifuse devices are ideal for plug-and-play protection for PC motherboards, battery and port protection for mobile phones, and port protection for game consoles.
Features
- Compliant with AEC-Q200 Rev-C Stress Test Qualification for Passive Components in Automotive Applications
- Compact design to save board space - 1206 footprint
- Small size results in fast time to react to fault events
- Symmetrical design
- RoHS compliant and halogen-free
- UL and TüV certifications
Applications
- USB port protection - USB 2.0, 3.0, and OTG
- HDMI 1.4 Source protection
- PC motherboards - plug-and-play protection
- Mobile phones - battery and port protection
- Digital cameras
- Game console port protection
- Automotive electronic control modules
Specifications
- -40°C to 85°C operating temperature range
- 6V to 30V maximum voltage
- 0.12A to 2.00A hold current
- 0.085Ω to 8.500Ω R1 maximum resistance
- Moisture Sensitivity Level (MSL) 1
- ESD Classification - HBM Class 6
