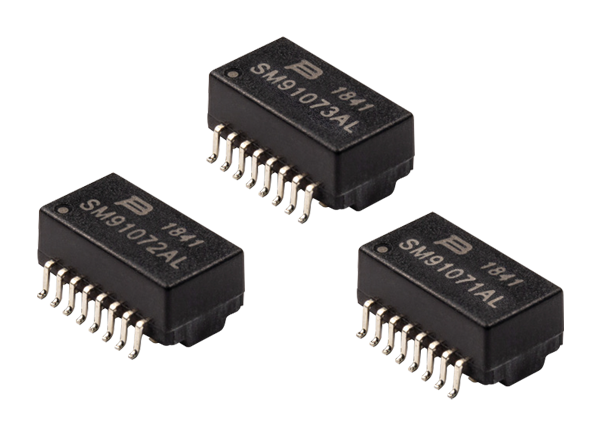

Bourns SM9107xAL AEC-Q200 LAN 10/100 Base-T Transformers
Bourns SM9107xAL LAN 10/100 Base-T Transformers are single-port LAN 10/100 Base-T / Isolation transformer modules with common mode chokes for noise rejection in Ethernet applications. Bourns SM9107xAL LAN transformers meet IEEE 802.3u standards, offer 1500VAC isolation voltage, and an extended operating temperature range of -40°C to +125°C. These LAN transformers are AEC-Q200 qualified and RoHS compliant.
Features
- Designed to meet IEEE 802.3u (100 Base-T) specifications
- AEC-Q200 compliant
- 1500VAC isolation voltage
- -40°C to +125°C operating temperature range
- RoHS compliant
- Designed for diagnostics applications

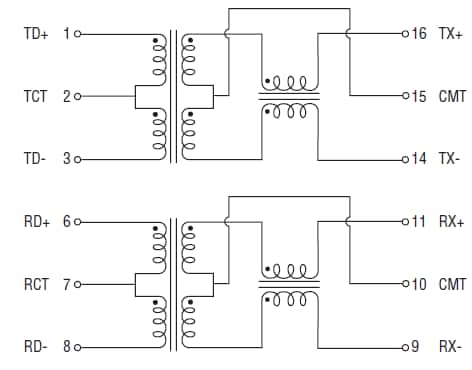

SM91071AL Electrical Schematic
SM91072AL & SM91073AL Electrical Schematic
