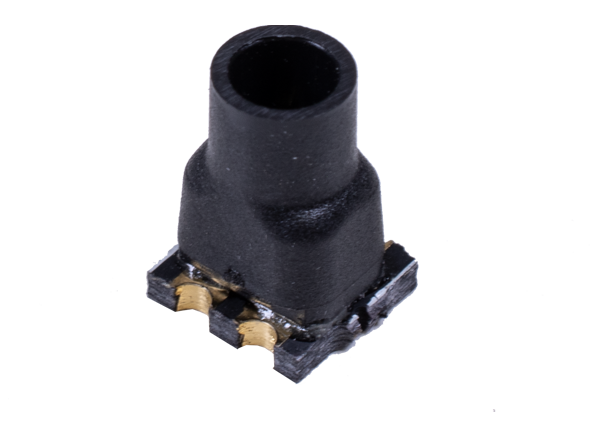

BIVAR SMTV01 Surface-Mount Flexible Light Pipe Adapters provide a one-piece SMT solution to complete a 2mm flexible light pipe system. They feature an optimized design that maximizes light transmission without light bleeding from the board to the front panel. The SMTV01 features a small footprint (0606) and is ideally suited for use with BIVAR's 2mm Flexible Light Pipe System.
Small footprint (0606)
Ideally suited for use with Bivar's 2mm Flexible Light Pipe System
Maximizes light transmission without light bleeding from the board to the front panel
Eliminates mounting holes and the manual insertion process required for traditional flexible light pipe adapters/systems
Eliminates the manual wave soldering needed for traditional discrete flexible light pipe adapters/systems
LED color options include 4 single colors, 3 bi-color configurations, and a tri-color RGB LED with multiple luminous intensity output options
