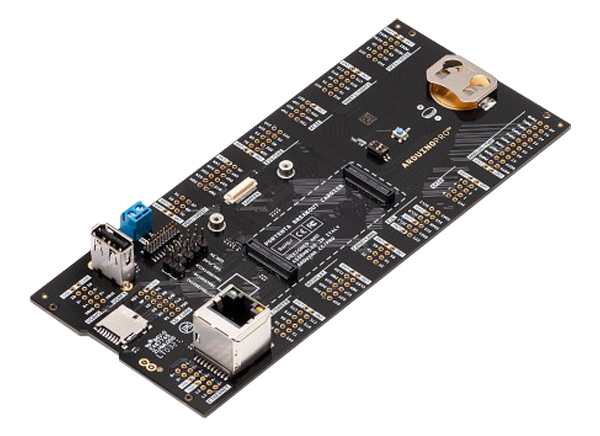

Arduino Breakout Board for Portenta is designed to prototype and test devices connections and capacity within the Portenta family boards. The board makes all high-density connectors' signals individually accessible. This allows a quick and easy connection to test external hardware components normally needed during development in the lab.
Power ON Button
Boot mode DIP switch
RJ45 GBit Ethernet
Micro SD card
OpenMV shutter module
MIPI 20T JTAG with trace capability
CR2032 RTC Lithium Battery backup
External power terminal block
Break out all Portenta High-Density connector signals
Male/female HD connectors allow interposing breakout between Portenta and shield to debug signals
Standard Portenta High-Density connector pinout
