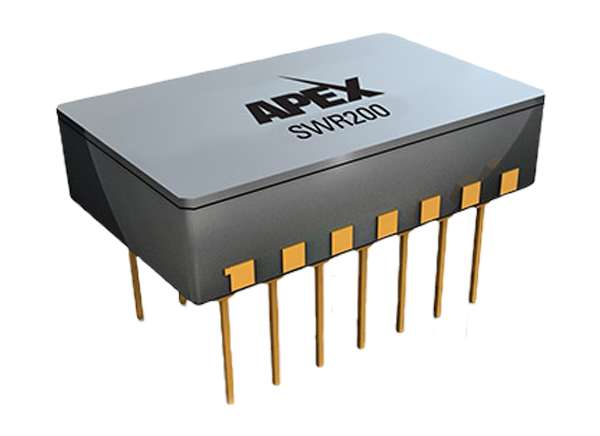

Apex Microtechnology SWR200 Precision Sine Wave Reference
Apex Microtechnology SWR200 Precision Sine Wave Reference provides a stable +7.071V at ±0.5% sine wave output and a 20ppm/°C temperature coefficient over the full military temperature range. Extreme accuracy is achieved by a chopper-based AGC circuit. The temperature characteristic of the chopper circuit compensates for the typical nonlinearity of the internal DC Zener reference. This results in a near-linear amplitude-temperature characteristic. The frequency of the SWR200 is programmable with two external capacitors.
Features
- +7.071VRMS, ±0.5% high accuracy
- 20ppm/°C (-55°C To +125°C) low drift
- 10ppm/1000 hours typical excellent stability
- 0.1% Thd @ f = 3300Hz low distortion
- Military processing option
Applications
- Transducer Excitation
- High-Resolution Servo Systems
- High Precision Test and Measurement Instruments
- AC Voltage Standard
- LVDT or RVDT Reference
- Multiplying D/A Reference
Typical Connection
