Apex Microtechnology SA303 Three Phase Switching Amplifier ICs

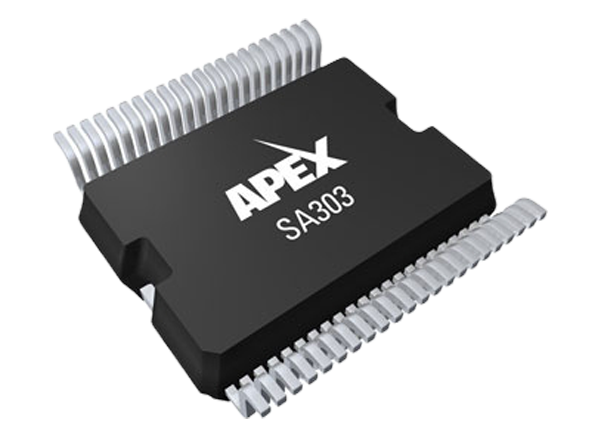

Apex Microtechnology SA303 Three Phase Switching Amplifier ICs are low-cost 60V pulse width modulation (PWM) motor-driver ICs. The SA303HU provides a high level of integration for driving brush-type DC motors between lower current devices and higher cost drivers operating on 400+ voltage supplies. A seamless digital interface is possible with the SA303HU by using an MCU or DSP. Individual control of the top and bottom side output FETs is allowed via direct signals from the processor.
Features
- Low Cost 3 Phase Intelligent Switching Amplifier
- Directly Connects to Most Embedded Microcontrollers and Digital Signal Controllers
- Integrated Gate Driver Logic with Dead-Time Generation and Shoot-through Prevention
- Wide Power Supply Range (8.5V To 60V)
- Over 10A Peak Output Current per Phase
- Independent Current Sensing for each Output
- User Programmable Cycle-by-Cycle Current Limit Protection
- Over-Current and Over-Temperature Warning Signals
Applications
- 3 Phase Brushless DC motors
- Multiple DC Brush Motors
- 3 Independent Solenoid Actuators
