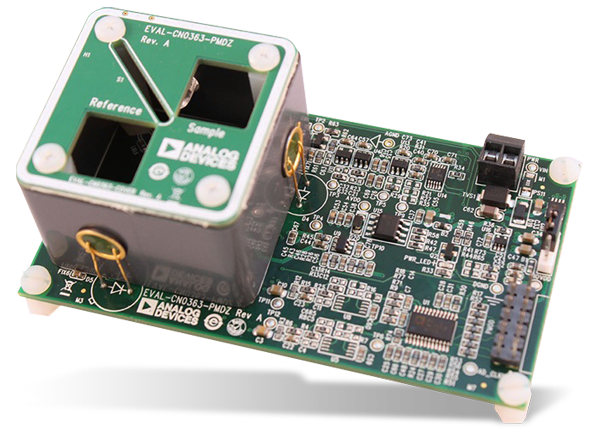

Analog Devices Inc. CN0363-PMDZ Evaluation Board
Analog Devices CN0363-PMDZ Evaluation Board is designed to evaluate CN0363 dual-channel colorimeter that measures concentrations and characterizes materials through absorption spectroscopy. The CN0363 colorimeter features a modulated light source transmitter, very low noise 24-bit ∑-Δ ADC, standard PMOD connector, and FPGA.
The CNO363 evaluation board also offers Trans-Impedance Amplifiers (TIA) with a programmable gain on each channel and digital synchronous detection. This system strongly rejects any noise sources at frequencies other than modulation frequency thus resulting in excellent accuracy. The CN0363-PMDZ evaluation board operates at 6VDC to 12VDC power supply range.
Features
- Dual-channel colorimeter
- Modulated light source transmitter
- High sensitivity low noise trans-impedance amplifier
- Programmable gain Trans-Impedance Amplifiers (TIA)
- Digital synchronous detection
- 6VDC to 12VDC power supply range
- Excellent accuracy
- RoHS compliant
