Analog Devices Inc. LTC7852 Switching Controllers

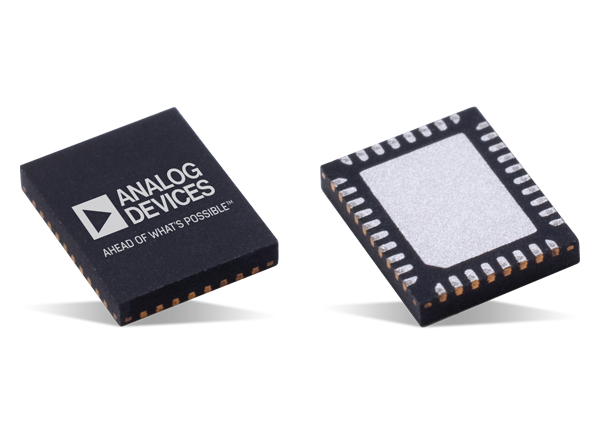

Analog Devices Inc. LTC7852 Switching Controllers offer 6-phases and dual output current mode synchronous step-down switching. The LTC7852 works in conjunction with external power train devices such as DrMOS, power blocks or discrete N-channel MOSFETs and associated gate drivers. The device has a flexible design enabling 1-, 2-, 3-, 4-, 5-, and 6-phase configurations. The LTC7852 provides a unique feature that enhances the signal-to-noise ratio of the current sense signal. This feature allows the use of inductors with very low DC winding resistances for maximum efficiency.
Features
- Sub-Milliohm DCR Sensing or DrMOS with Current Sense Improves Efficiency
- Operates with Power Blocks, DrMOS or External Gate Drivers and MOSFETs
- ±0.5% Total Output Voltage Accuracy
- tON(MIN) = 40ns, Capable of Very Low Duty Cycles at High Frequency
- Dual Differential Remote Sensing Amplifiers
- Flexible Phase Configuration
- Dual Output Current Monitoring
- Programmable Frequency Range of 250kHz to 1.2MHz
- VIN Range Is Not Limited by IC
- VCC Range: 4.5V to 5.5V
- VOUT Range: 0.5V to 2.0V
- 48 Lead (5mm × 6mm) GQFN for LTC7852
- 36 Lead (4mm × 5mm) QFN for LTC7852-1
Applications
- Computer Systems
- Telecom and Datacom Systems
- DC Power Distribution Systems
Typical Application
Associated Tools
Analog Devices Inc. LTC7852 Demo Circuits DC2631A
High-efficiency, high output current step-down converters each with corresponding assembly type.
