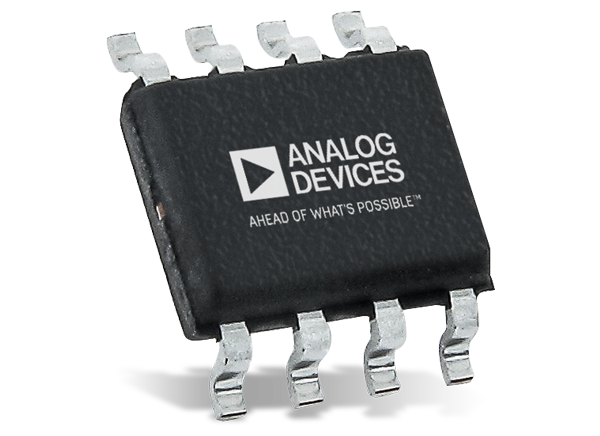

Analog Devices Inc. LT6654BX 2.5V Precision Voltage Reference
Analog Devices Inc. LT6654BX 2.5V Precision Voltage Reference operates from voltages up to 36V and is fully specified from -40°C to +175°C. A buffered output ensures both sourcing and sinking output current, with low output impedance and precise load regulation. These features make the LT6654BX an ideal choice for high-temperature applications.
The LT6654BX features low thermal hysteresis to ensure high accuracy. The low 1.5ppmP-P output voltage noise rating minimizes measurement uncertainty. Because the LT6654BX can also sink current, it can operate as a low power negative voltage reference with the same precision as a positive reference.
The LT6654BX Voltage Reference is offered in a 8-lead Micro Small Outline Package (MSOP).
Features
- 2.5V Output Voltage
- 100% Tested at +175°C
- Total Error <1% Over -40°C to +175°C
- Low Thermal Hysteresis: 30ppm Over -40°C to +175°C
- Wide Supply Range to 36V
- Long Term Drift: 50ppm/√kHr
- Line Regulation(Up to 36V): 30ppm/V Max at +175°C
- Low Dropout Voltage: 120mV Max at +175°C
- Sources 3mA and Sinks 10mA at +175°C
- Load Regulation 50ppm/mA Max at +175°C
- Low Noise 1.5ppmP-P (0.1Hz to 10Hz)
- No Thermal Shutdown
- Fully Specified from -40°C to +175°C
- Package Type: MSDOP-8
- Package Dimensions: 3mm x 3mm
Applications
- Oil and Gas Exploration
- Down-Hole Drilling and Instrumentation
- Avionics
- Heavy Industrial
- High-Temperature Automotive
