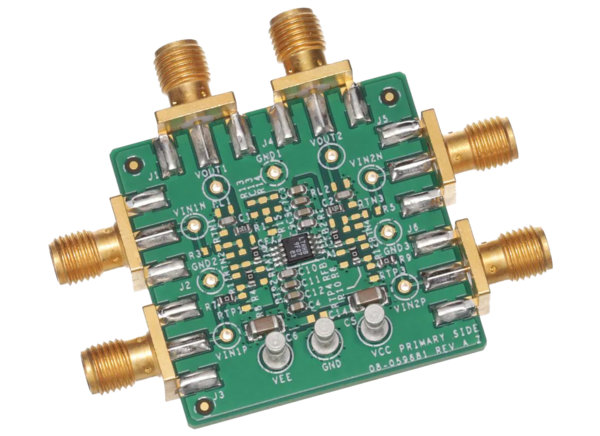

Analog Devices Inc. EVAL-LTC6227MS8E Evaluation Board
Analog Devices Inc. EVAL-LTC6227MS8E Evaluation Board is a pre-populated board on a buffer configuration with a post-low-pass filter. This configuration allows the LTC6228 to be used as a high-speed Analog-to-Digital Converter (ADC) driver. This evaluation board is designed to evaluate LT6227. The EVAL-LTC6227MS8E supports typical configurations of an Op-Amp and for typical applications of the LTC6227 that includes an active filter. The SHDN_N pin allows to shunt with the VCC pin, the VEE pin, or to an external voltage drive.
Features
- Pre-populated board on a buffer configuration with a post-low-pass filter
- Allows the LTC6228 to be used as a high-speed Analog-to-Digital Converter (ADC) driver
- Evaluates LT6227
- Supports typical configurations of an Op-Amp and for typical applications of the LTC6227
Related Product
Analog Devices Inc. Amplificadores operacionales de salida de riel a riel LTC6226/LTC6227
Amplificadores operacionales únicos/duales estables con un producto ganancia-ancho de banda de 420 MHz y un índice de corriente en reposo de 180 V/μs.
Publicado: 2020-05-05
| Actualizado: 2022-03-11
