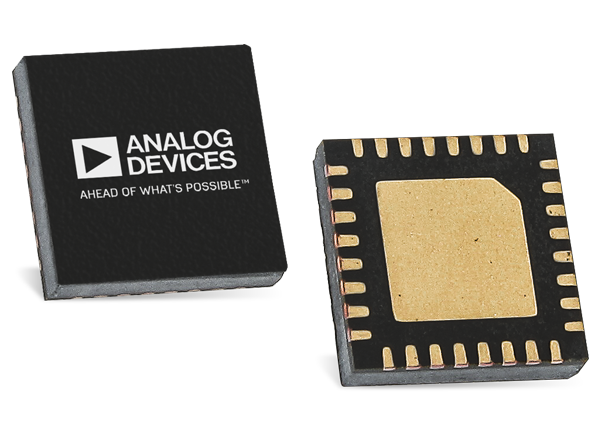

Analog Devices Inc. HMC881A MMIC Low-Pass Filter

Analog Devices HMC881A Monolithic Microwave Integrated Circuit (MMIC) Low-Pass Filter features a user-selectable cutoff frequency. The cutoff frequency can be varied from 2.4GHz to 4GHz by applying a single analog tuning voltage between 0V and 14V. This low-pass filter provides a low 3dB insertion loss, 16.5dB return loss and 1.35×f3dB stopband attenuation of > 20dB. This tunable filter can be used as a much smaller alternative to physically large switched filter banks and cavity tuned filters. The HMC881A has excellent microphonics due to the monolithic design and provides a dynamically adjustable solution in advanced communications applications. The low-pass tunable filter is packaged in a RoHS compliant 5mm×5mm LFCSP package.


  • Amplitude settling time: 200ns (typical)
  • Wideband rejection: ≥ 35dB
  • Single-chip replacement for mechanically tuned designs
  • RoHS compliant, 32-lead, 5mm×5mm LFCSP package


  • Testing and measurement equipment
  • Military radar and electronic warfare/electronic countermeasures (ECMs)
  • Satellite communication and space
  • Industrial and medical equipment

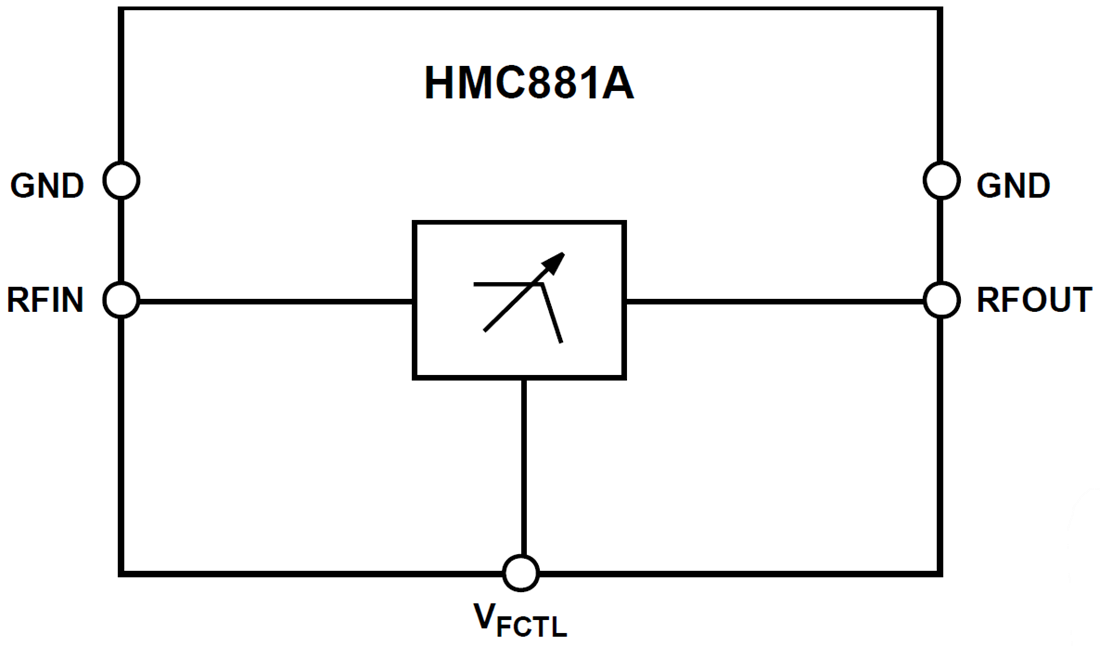

Functional Block Diagram

Block Diagram - Analog Devices Inc. HMC881A MMIC Low-Pass Filter
