Analog Devices Inc. EVAL-ADSMOKEKITZ Smoke Evaluation Kit

Analog Devices Inc. EVAL-ADSMOKEKITZ is an "out of the box" Smoke Detection Evaluation Kit based on the ADPD188BI Integrated Optical Module. The ADPD188BI module integrates a highly efficient photometric front end, two light-emitting diodes (LEDs), and two photodiodes (PDs). The ADPD188BI is housed in a custom package to prevent light from going from the LED to the photodiode without entering the smoke detection chamber.


  • EVAL-ADPD188BIZ-S2 Development Board featuring the ADPD188BI module

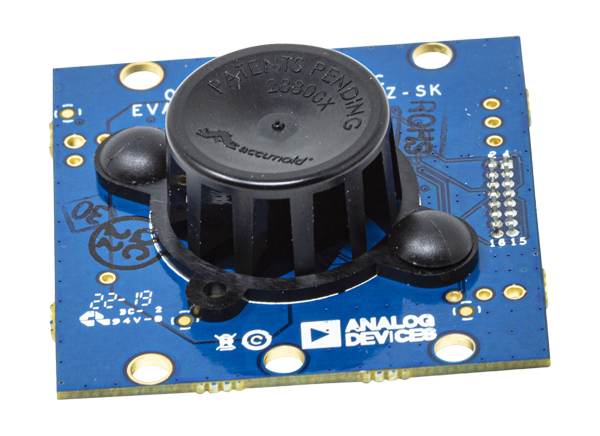

  • EVAL-CHAMBER Smoke Chamber, which is designed to control the environment around the ADPD188BI Module
  • EVAL-ADPDUCZ Microcontroller Board

WaveTool GUI

The WaveTool Graphic User Interface (GUI), provides users of the EVAL-ADSMOKEKITZ Smoke Evaluation Kit with both low-level and high-level configurability, real-time frequency, time-domain analysis, and user datagram protocol (UDP) transfer capability.


  • Supports UL-217 edition 8/ UL-568 edition 7, EN-54, GB, and ISO standards
  • Lowers nuisance alarms using dual wavelength detection with high SNR and dynamic range.
  • Low power dissipation for long battery life
  • Integrated Optical Module with 1 blue LED, 1 IR LED, and 2 Photo diodes
    • Simplifies EMC design
    • Allows for greater diversity of industrial design options
    • Results in 75% fewer discrete components
    • Compact 3.8mm x 5mm x 0.9mm footprint
  • Loop calibration at final test reduces calibration challenges with smoke detector products


  • Residential smoke detection
    Meets strict regulatory requirements such as UL217 edition 8

  • Emerging home ecosystems and IoT applications
    Brings cutting edge smoke detection technology to the buildings of tomorrow
  • Intelligent Buildings
    Add smoke detection into connected building systems

  • Transportation
    Enables small, low-power detection in trains, ships, and airplanes


ADPD188BI Block Diagram

Block Diagram - Analog Devices Inc. EVAL-ADSMOKEKITZ Smoke Evaluation Kit
