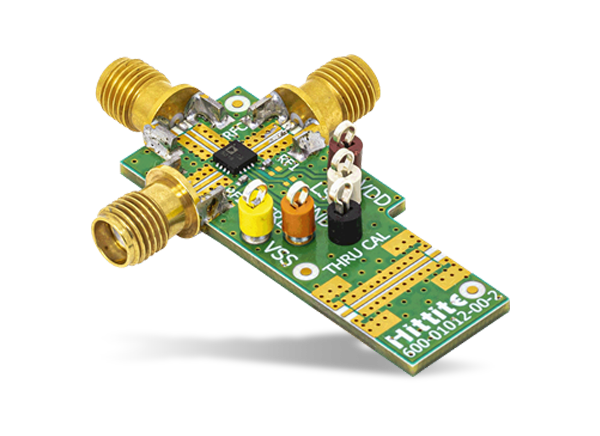

Analog Devices Inc. EVAL-ADRF5019 Evaluation Board
Analog Devices Inc. EVAL-ADRF5019 Evaluation Board is a platform for evaluating the performance of the ADRF5019 100MHz to 13GHz, single-pole double-throw (SPDT) switch manufactured in a silicon process. The ADRF5019-EVALZ is a connectorized evaluation board assembled with the ADRF5019 device and the ADRF5019 application circuitry. All components are located on the primary side of the ADRF5019-EVALZ Evaluation Board.
Features
- Contains ADRF5019 device and external components
- RF SMA connectors
- Through line for calibration
Required Equipment
- DC power supplies
- Network analyzer
Front & Back Layout
SCHEMATIC
View ADRF5019 RF Switches
Analog Devices Inc. ADRF5019 SPDT RF Switches
Feature non-reflective 50Ω design, 100MHz to 13GHz operating frequency, and high power handling.
