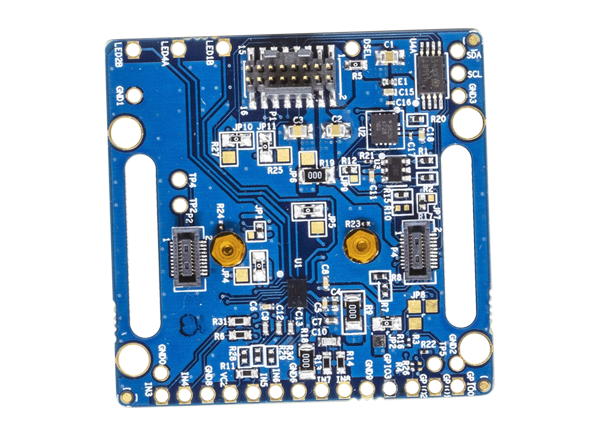

Analog Devices Inc. EVAL-ADPD4100Z-PPG Evaluation Board
Analog Devices Inc. EVAL-ADPD4100Z-PPG Evaluation Board is designed to evaluate the ADPD4100/ADPD4101 multimodal sensor front ends. This evaluation board comes with three green LEDs, one infrared (IR) LED, and one red LED that are separately driven. The EVAL-ADPD4100Z-PPG evaluation board incorporates a single 7mm2 photodiode (PD) with no optical fiber coating. This evaluation board utilizes the Wavetool evaluation software GUI that provides low-level register access and high-level system configurability. The EVAL-ADPD4100Z-PPG evaluation board implements a simple discrete optical design for vital signs monitoring applications like wrist-based photoplethysmography (PPG).
Features
- Evaluates the ADPD4100/4101 multimodal front ends
- ADPD4100 (SPI) is the default population
- All inputs and outputs accessible
- 3 separately driven green LEDs
- 1 red and 1 IR LED
- Metal baffle to block optical crosstalks
- Works with the Wavetool evaluation software that allows:
- Time-domain graphing and logging
- Frequency domain graphing
- Statistical analysis
- Data streaming to other applications
- Implements a simple discrete optical design
Kit Contents
- EVAL-ADPD4100Z-PPG evaluation board
- Ribbon cable
- Wrist strap with hook and loop fastener
Overview
Optional Wristband
Associated Product
Analog Devices Inc. ADPD4100 & ADPD4101 Multimodal Sensor Front Ends
Feature 8 input channels with multiple operation modes for various sensor measurements.
Associated Boards
Analog Devices Inc. EVAL-ADPD410x-ARDZ Arduino Breakout Boards
The EVAL-ADPD4100-ARDZ/EVAL-ADPD4101-ARDZ, designed for developing ADPD4100 & ADPD4101 applications.
