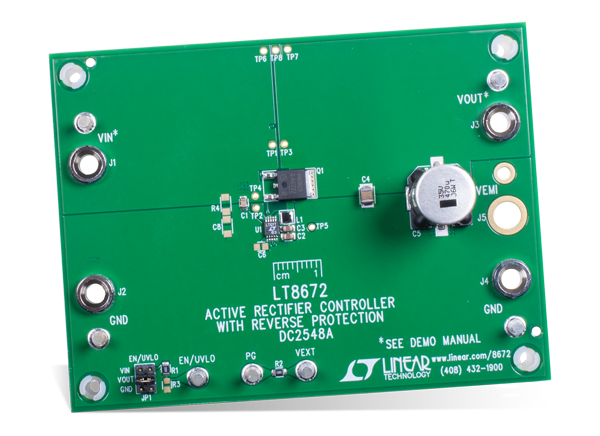

Analog Devices DC2548A Demo Board for LT8672 Active Controller enables designers to evaluate the performance of the LT8672 Active Rectifier Controller with Reverse Protection. The demonstration board includes Demonstration Circuit 2548A, which features the Analog Devices LT8672 Active Rectifier Controller. The LT8672 Active Rectifier Controller has an input voltage range of -40V to +42V. The DC2548A Demonstration Board provides two clamping diodes to protect the IC from overvoltage spikes at the input. The design limits the application's DC input voltage range to -15V and +35V.
Includes Demonstration Circuit 2548A featuringLT8672 Active Rectifier Controller with Reverse Protection
Demo board is designed for a 5A load current
Two clamping diodes protect the LT8672 from overvoltage spikes at the input
Limits the application’s DC input voltage range to –15V and +35V
Allows installation of an EMI filter at the output
Analog Devices Inc. LT8672 Active Rectifier Controllers
AEC-Q100 qualified controllers designed for reverse input protection.
