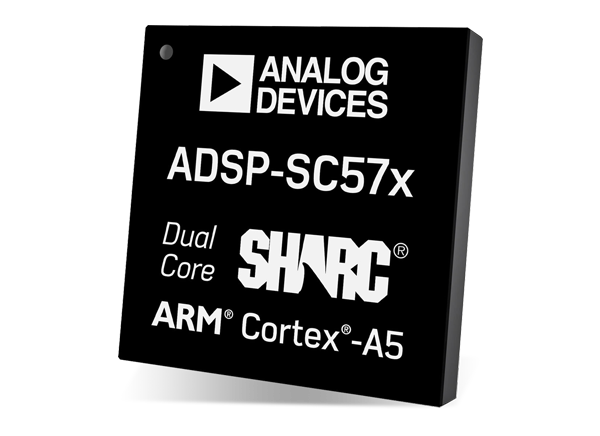

Analog Devices Inc. ADSP-SC57x Multicore Processors

Analog Devices Inc. ADSP-SC57x Multicore Processors deliver greater than 6 giga-floating-point operations per second using two enhanced SHARC+ cores. The processors combine ADI's SHARC technology with ARM® Cortex-A5 system control capability. This provides a high performance, low cost solution for complex applications demanding the latest advanced algorithms, interface technology, security and scalability. With more than 2MBytes of on-chip memory, the system cost can be optimized with two package options including the choice to use external memory.

The processors consume less than 2 watts at Automotive temperatures, and deliver the advantage of industry leading digital signal processing performance. Target applications include automotive premium audio, consumer, pro-audio and high-end industrial systems.


  • Single-chip SOC Providing Optimized BOM Cost and Board Area Design
    • Integrated dual SHARC+ floating-point DSP cores and ARM® Cortex®-A5 processor
    • Scalable performance and features in two different package options
    • Lower cost derivative to the successful ADSP-SC58x family
  • Class leading low power floating-pt DSP Performance at under 2W
    • 5.4GFLOPs, 1.8GMACS Floating-pt SHARC+ DSP performance (2x 450MHz)
    • Enabling 105°C environments and reduced heat-sinks and no fans for increased reliability and robustness
  • Integrated & optimized low power connectivity engine (ADSP-SC57x series only)
    • Industry standard ARM® Cortex®-A5 (720DMIPS at 450MHz) with FPU and Neon® DSP extensions
    • Enhanced integrated peripherals including Gigabit Ethernet (w/AVB), MLB, USB, CAN & SDIO
  • Targeting advanced floating-point real-time DSP applications
    • Easy to use deterministic DSP coding at up to twice the previous SHARC performance
    • Code compatible SHARC+ cores add double precision floating point support, byte addressability, optional L1-cache mode and branch prediction
    • Large on-chip 384KB L1 SRAM/cache per SHARC+ core, large 1MB shared L2 SRAM & advanced DMA features
    • High performance external memory interface including DDR3L support (BGA package only)
    • Glue-less DSP Digital Audio Interfaces including 4x full SPORT (w/I2S), SPDIF & Sample Rate Converters
    • Multiple serial interfaces including Quad SPI, I2C, UARTs
    • Scalable multi-device support with high speed link-port
  • Advanced Security with Cryptographic accelerators and OTP Memory
    • For IP protection, fast secure boot and secure network connectivity
  • Data Integrity with Parity or ECC protected SRAM and Fault Management Unit
  • Multiple ADSP-SC57x and ADSP-2157x Product Options
    • One or two SHARC+ cores, with or without the ARM® Cortex®-A5 processor, and various peripheral options
    • Pin compatible options within two packages : 17mm × 17mm (0.8mm pitch) cspBGA and 24mm x 24mm LQFP
    • Full-featured BGA version or a cost-optimized, reduced pin-count LQFP option
  • Advanced Easy-to-Use Development Tools
    • CrossCore Embedded Studio (CCES) with optimized C/C++ compiler, DSP Libraries and project examples
    • SigmaStudioTM support provides an extensive selection of optimized audio libraries with easy to use graphical audio development and tuning tools for faster time-to-market
    • Micrium µC/OS-II® & µC/OS-III® real-time kernels on both SHARC+ and ARM® Cortex®-A5 cores, as well as Micrium USB Host, USB Device and file system stacks running on the ARM® Cortex®-A5
    • ADZS-SC573-EZLITE development kit with full reference schematics and PCB design details
    • High speed JTAG emulators (ICE-1000/2000) facilitate the creation, test, and debug of advanced applications
  • Comprehensive Automotive Applications Support
    • Optimized royalty-free Ethernet AVB stack developed and supported by Analog Devices
    • AUTOSAR MCAL drivers
    • Many additional third-party algorithms & software components including advanced ANC & multi-dimensional surround audio
  • Embedded Linux Support for ARM® Cortex®-A5 core
    • Buildroot based distribution
    • Integrated with CCES on Linux based host
    • Support for both kernel and application debugging
