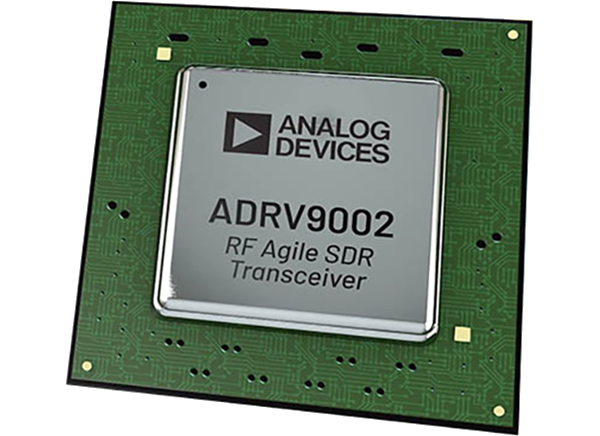

Analog Devices Inc. ADRV9002 Dual Narrow/Wideband RF Transceiver
Analog Devices Inc. ADRV9002 Dual Narrow/Wideband RF Transceiver is highly integrated and offers dual-channel transmitters, dual-channel receivers, integrated synthesizers, and digital signal processing functions. The IC delivers a versatile combination of high performance and low power consumption required by battery-powered radio equipment and can operate in both FDD and TDD modes. The ADRV9002 operates from 30MHz to 6000MHz and covers the UHF, VHF, licensed and unlicensed cellular bands, and industrial, scientific, and medical (ISM) bands. The IC can support both narrowband and wideband standards up to 40MHz bandwidth on both receive and transmit.
The transceiver consists of direct conversion signal paths with state of the art noise figure and linearity. Each complete receiver and transmitter subsystem includes DC offset correction, quadrature error correction, and programmable digital filters, which eliminate the need for these functions in the digital baseband. Several auxiliary functions such as auxiliary analog-to-digital converters (ADCs), auxiliary digital-to-analog converters (DACs), and general-purpose input/outputs (GPIOs) are integrated to provide additional monitoring and control capability. The transceiver also includes low power sleep and monitor modes to save power and extend the battery life of portable devices while monitoring communication.
The fully integrated phase-locked loops (PLLs) provide high performance, low power, fractional-N frequency synthesis for the transmitter, receiver, and clock sections. Careful design and layout techniques provide the isolation required in high-performance personal radio applications. Optimized for both narrowband and wideband signals, the fully integrated low power digital pre-distortion (DPD) enables the linearization of high-efficiency power amplifiers. All voltage controlled oscillator (VCO) and loop filter components are integrated to minimize the external component count. The local oscillators (LOs) have flexible configuration options and include fast lock modes.
The Analog Devices ADRV9002 core can be powered directly from 1.0V, 1.3V, and 1.8V regulators and is controlled via a standard 4-wire serial port. Other voltage supplies are used to provide proper digital interface levels and to optimize receiver, transmitter, and auxiliary converter performance. High data rate and low data rate interfaces are supported using configurable complementary metal-oxide semiconductors (CMOS) or low voltage differential signaling (LVDS) serial synchronous interfaces (SSI). The ADRV9002 is packaged in a 12mm x 12mm, 196-ball chip-scale package ball grid array (CSP_BGA).
Features
- 2 x 2 highly integrated transceiver
- Frequency range of 30MHz to 6000MHz
- Transmitter and receiver bandwidth up to 40MHz
- Fully integrated, fractional-N, RF synthesizers
- LVDS and CSSI serial data interface modes
- Low power monitor and sleep modes
- Multichip synchronization capabilities
- Fast frequency hopping capabilities
- Dynamic profile switching for dynamic data rates and sample rates
- Fully integrated DPD for narrowband and wideband waveforms
- Fully programmable via a 4-wire SPI
- 12mm x 12mm, 196-ball CSP BGA
Applications
- Mission-critical communications
- Very high frequency (VHF), ultrahigh-frequency (UHF), and cellular to 6GHz
- Time-division duplexing (TDD) and frequency division duplexing (FDD) applications
Videos
Development Tools
Analog Devices Inc. ADRV9002 Evaluation Boards
Designed to evaluate the ADRV9002, a dual-channel narrow/wide-band RF transceiver.
Related Products
Analog Devices Inc. ADRV9003 Narrow-Band/Wideband RF Transceiver
Highly integrated transceiver with single-channel transmitter and dual-channel receivers.
Analog Devices Inc. Transceptor de RF de doble banda ancha/estrecha ADRV9004
Transceptor de RF de banda ancha/estrecha 2x2 que funciona en un rango de frecuencia de 30 MHz a 6 GHz
Technical Articles
- ADRV9002 SDR Transceiver Delivers Big Advances in Frequency Hopping
This article provides an in-depth discussion of the high-level concept of frequency hopping (FH), the design principles of FH enabled through the flexible phase-locked loop (PLL) architecture of the ADRV9002 SDR Transceiver, and its four major FH features.

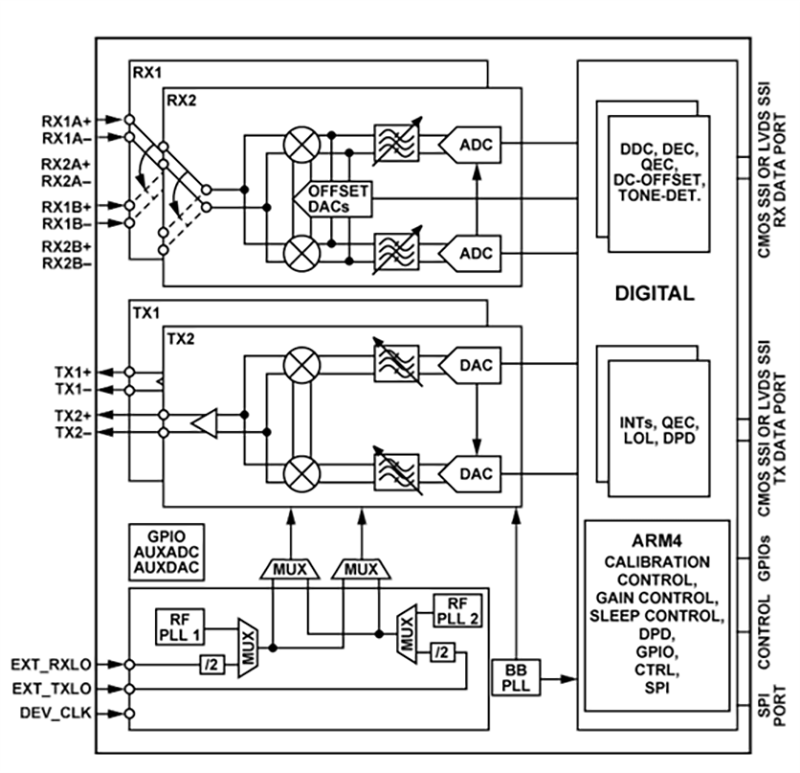

Block Diagram
Solve the Blocking Challenge for Mission Critical Communications
This article explains how a high dynamic range (DR) RF transceiver addresses the blocking challenge for mission-critical communications and other highly dynamic, demanding wireless applications.
