Analog Devices Inc. ADRV2CRR-FMC RF SOM Carrier Board

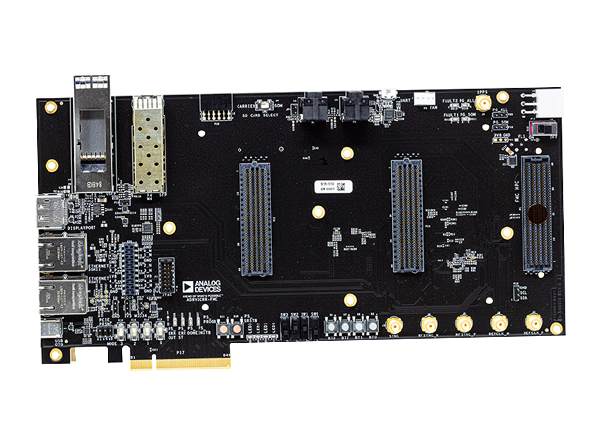

Analog Devices Inc. ADRV2CRR-FMC RF SOM Carrier Board evaluates the ADRV9009-ZU11EG. Analog Devices ADRV2CRR-FMC Carrier Board contains common high-speed I/O ports to provide flexible connectivity options. The board includes a power supply that powers up the full system, a heatsink that fits with the RFSOM heat spreader plate, and the necessary cables and adapters to get up and running. AD-FMCOMMS8-EBZ RF board also fits on the carrier board to expand the system to eight Tx and Rx radio channels.

Features

  • Carrier board for prototyping with the ADRV9009-ZU11EG(RF-SOM) and AD-FMCOMMS8-EBZ
  • 2 × 400-pin FMC sockets for connecting to the RF-SOM
  • 1 × 400pin HPC FMC connector to connect compatible expansion board, such as the AD-FMCOMMS8-EBZ
  • 1Gbps Ethernet × 2, USB3.0, PCIe Gen3 × 8, SFP+, QSFP+ data connectivity
  • Other I/Os include Displayport, SD Card holder, PMOD, USB UART, Audio In/Out, Fan, JTAG, Status LEDs, power and config switches
  • System clocking inputs include EXT REFCLK, SYNC In, 1PPS
