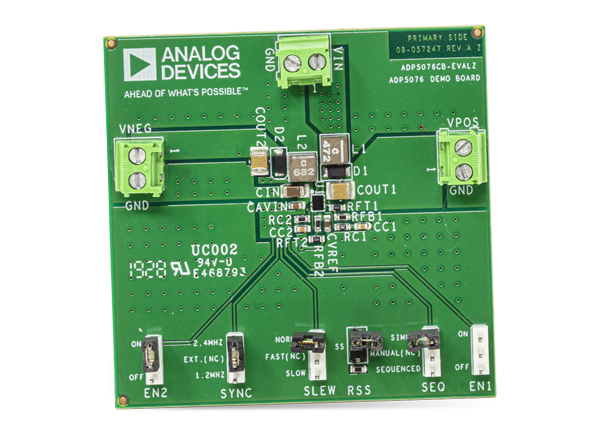

Analog Devices Inc. ADP5076CB-EVALZ Evaluation Board
Analog Devices ADP5076CB-EVALZ Evaluation Board demonstrates the functionality of the ADP5076 DC-to-DC converter. The ADP5076 is a dual high-performance regulator that generates independently regulated positive and negative rails. The board evaluates simple device measurements, such as line regulation, load regulation, and efficiency. The development tool also demonstrates device features such as selectable switching frequency, soft start, sequencing, and slew rate control.
Features
- 3V to 5.5V input voltage supply range
- ±15V output voltage
- Output current up to 480 mA (VPOS), up to 200 mA (VNEG), depending on VIN
Associated Product
Analog Devices Inc. ADP5076 DC-to-DC Switching Regulator
Generates independently regulated positive and negative rails.
Schematic
