Analog Devices Inc. ADP1071-2EBZ12.1V Evaluation Board
Analog Devices Inc. ADP1071-2EBZ12.1V Evaluation Board is designed to evaluate the ADP1071-2 in a power supply application. The ADP1071-2EBZ12.1V Board is set up to act as an isolated power supply unit (PSU), with a rated load of 12.1VDC, 3A in steady-state (5A peak) from a 36VDC to 60VDC source.
The ADP1071-2EBZ12.1V Board provides synchronization through connectors, allowing direct paralleling evaluation when multiple evaluation boards are connected in parallel to a common bus. Multiple test points allow easy access to all critical nodes and pins.
Features
- Full support evaluation kit for the ADP1071-2
- 36W flyback topology
- 12.1V output voltage (VDC)
- 3A steady state, 5A peak
- Forced CCM operation
- Dedicated internal primary and secondary side MOSFET drivers
- External reference signal tracking
- Precision enabled undervoltage lockout with hysteresis
- Short-circuit, output overvoltage, cycle by cycle input overcurrent, and over temperature protection
- Frequency synchronization
- Soft start and soft stop functionality
Required Equipment
- DC power supply capable of 36VDC to 60VDC, 3A
- Electronic load capable of 150W, 0V to 60V
- Oscilloscope capable of ≥500MHz bandwidth, 2 channels to 4 channels
- Precision digital multimeter (HP34401 or equivalent)
Associated Products
Analog Devices Inc. ADP1071 Isolated Flyback Controllers
Feature OVP, UVLO, precision enable with adjustable hysteresis, OTP, and power-saving LLM.

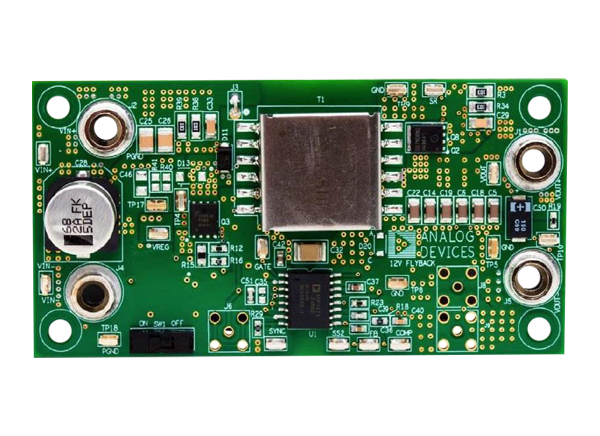

Front & Back View
