Analog Devices Inc. ADA4528-1 & ADA4528-2 Precision Zero-Drift Op Amps
Analog Devices Inc. ADA4528-1 and ADA4528-2 Precision Zero-Drift Operational Amplifiers feature rail-to-rail input and output swing. Offering an offset voltage of 2.5μV, offset voltage drift of 0.015μV/°C, and typical noise of 97nVp-p (0.1Hz to 10Hz, AV = +100), the ADA4528-1/ADA4528-2 op amps are well suited for applications in which error sources cannot be tolerated.
The ADA4528-1 and ADA4528-2 Op Amps have a wide operating supply range of 2.2V to 5.5V, high gain, and excellent CMRR and PSRR specifications, making these devices ideal for applications that require precision amplification of low-level signals, such as position and pressure sensors, strain gauges, and medical instrumentation.

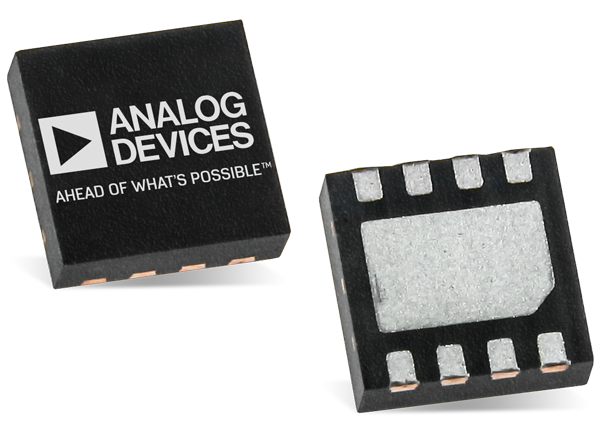

The Analog Devices Inc. ADA4528-1 and ADA4528-2 Op Amps are offered in LFCSP8 and MSOP8 packages.
Features
- Low offset voltage: 2.5μV maximum
- Low offset voltage drift: 0.015μV/°C maximum
- Low noise
- 5.6nV/√Hz at f = 1kHz, AV = +100
- 97nVp-p at f = 0.1Hz to 10Hz, AV= +100
- Open-loop gain: 130dB minimum
- CMRR: 135dB minimum
- PSRR: 130dB minimum
- Unity-gain crossover: 4MHz
- Gain bandwidth product: 3MHz at AV = +100
- -3dB closed-loop bandwidth: 6.2MHz
- Single-supply operation: 2.2V to 5.5V
- Dual-supply operation: ±1.1V to ±2.75V
- Rail-to-rail input and output
- Unity-gain stable
Applications
- Thermocouple/thermopile
- Load cell and bridge transducers
- Precision instrumentation
- Electronic scales
- Medical instrumentation
- Handheld test equipment
