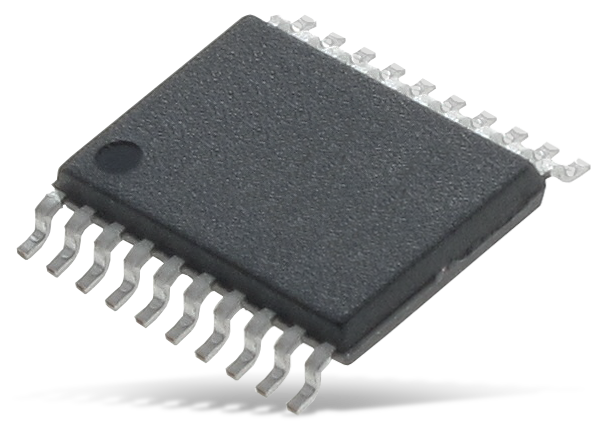

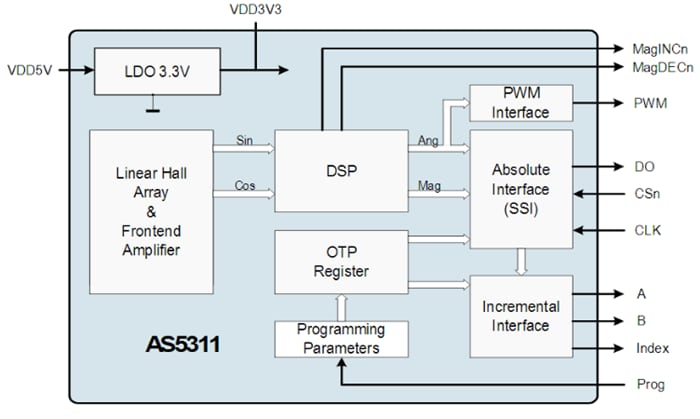

ams OSRAM AS5311 High-Resolution Magnetic Linear Encoder is a system-on-chip and combines integrated Hall elements, an analog front end, and digital signal processing on a single chip. This contactless encoder has a multipole magnetic strip or ring magnet with a pole length of 1mm, which is used to sense the rotational or linear motion. The encoder provides accurate linear motion and off-axis rotary sensing with a resolution down to <0.5µm and operates at 3.3V or 5V. The absolute measurement provides an instant indication of the magnet position within one pole pair with a resolution of 488nm per step. ams OSRAM AS5311 High-Resolution Magnetic Linear Encoder is offered in a small 20-pin TSSOP package.
PWM and serial interface 12-bit digital output
Incremental output with index
Red - yellow - green indicators monitor magnet placement over the chip
Micro actuator feedback
Servo drive feedback
Replacement of optical encoder
ams OSRAM AS5311 Adapter Board
Allows testing and evaluation of the AS5311 linear encoder without building a test fixture or PCB.
