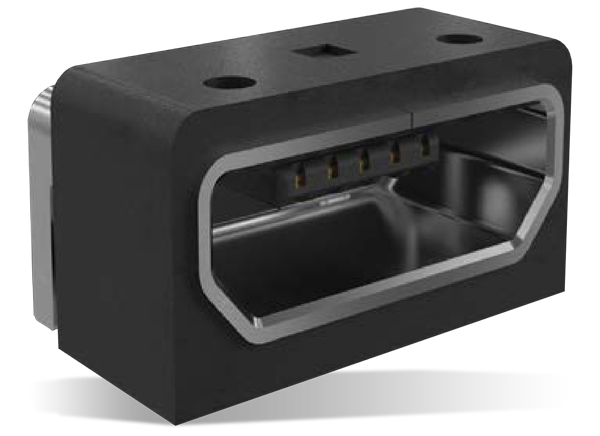

Amphenol Commercial Waterproof Micro USB 2.0 Connector

Amphenol Commercial Waterproof Micro USB 2.0 Connector features a dual-layer shell design and full metal shielding that protects against electromagnetic interference (EMI), radio-frequency interference (RFI), and electromagnetic discharge (ESD). The shell design with plastic tongue ensures high reliability and prevents damage. This Type-B connector supports fast charging with 1.8A power contacts and is capable of supporting up to 3A. The connector is equipped with 5 circuits capable of 480Mb/s high-speed transmission. Amphenol Commercial Waterproof Micro USB 2.0 Connector is RoHS compliant, halogen free, and meets IPX4 ratings. Applications include automotive, connector hubs, computers, hard disk drives, medical, and more.


  • Equipped with 5 circuits compliant with USB 2.0 specifications for high-speed signal up to 480Mb/s transmission
  • Robust shell hold-down design offers improved peeling force
  • Small USB 2.0 interface saves space on PCB
  • Optimized shell structure design with full metal shielding protects against EMI, RFI, and ESD
  • Fully shielded metal shell with overmolded sealing
  • Rugged gold-plated leaf contact prevents corrosion and improves reliability
  • Optimized design structure with epoxy glue-based plastic sealing meets IPX4 ratings
  • Halogen free and RoHS compliant


  • 100MΩ (minimum) insulation
  • Mechanical performance:
    • 35N (maximum) insertion loss
    • 10N (minimum) withdrawal force
  • 30V DC voltage
  • Signal contacts 1A and power contacts 1.8A of current
  • -40°C to +85°C operating temperature range
  • ∆T30°C (maximum) current rating/temperature rise


  • Automotive
    • Chargers
    • Car media
    • Players/hubs
  • Consumers
    • Connector hubs
    • Flash disks
    • Mobile phones/tablets
    • VR cameras
  • Data
    • Hard disk drives
    • Solid state drives
  • Industrial and instrumentation
    • Industrial computers
    • Point-of-sale (POS) systems
  • Medical
