Amphenol Commercial ExpressPort® QSFP+ Connectors

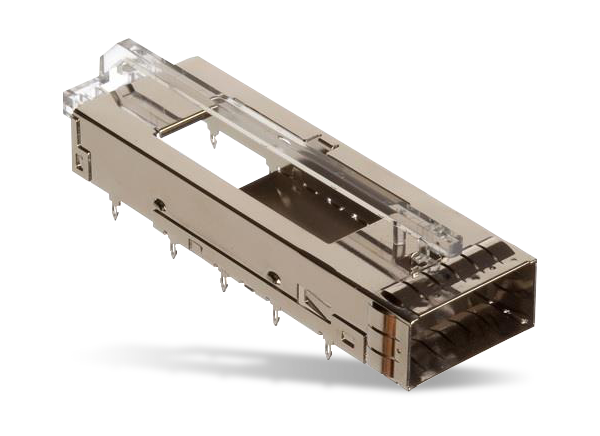

Amphenol Commercial ExpressPort® QSFP+ Connectors feature a 38-position, 0.8mm pitch SMT connector and a press-fit cage. With four channels of data in one pluggable, the system interface is capable of transferring data up to 16Gb/s per channel and replacing up to four standard SFP+ receptacles. These features result in greater port density and overall cost-effectiveness over traditional SFP+ products. Supported standards include Gigabit Ethernet, InfiniBand, and SONET/SDH with different data rate options. The Amphenol ExpressPort QSFP+ inerconnect system includes cages in single, ganged, and stacked configurations. Multiple heat sink options support various thermal requirements.

Features

38-position, 0.8mm-pitch SMT connector and press-fit cage
Capable of transferring data up to 16Gb/s per channel and replacing up to four standard SFP+ receptacles
Increased cost-effectiveness and greater port density over traditional SFP+ products

Applications

Communications
- Switches
- Routers
- Networked storage systems
- Data center networking

Data
- Servers
- External storage systems
- High-performance computing (HPC)

Specifications

30V_DC per contact operating voltage
0.5A per contact operating current
100Ω ±10Ω differential impedance
250 mating cycles
1.44mm min. PCB thickness single side (cage)
2.85mm min. PCB thickness belly to belly (cage)
40N max. mating force
50g min. contact normal force

30N max. unmating force (cage)
Insertion force to PCB (cage)
- 780N for 1 port
- 1000N for 2 ports
- 1700N for 4 ports
- 2400N for 6 ports
-40°C to +85°C operating temperature range
