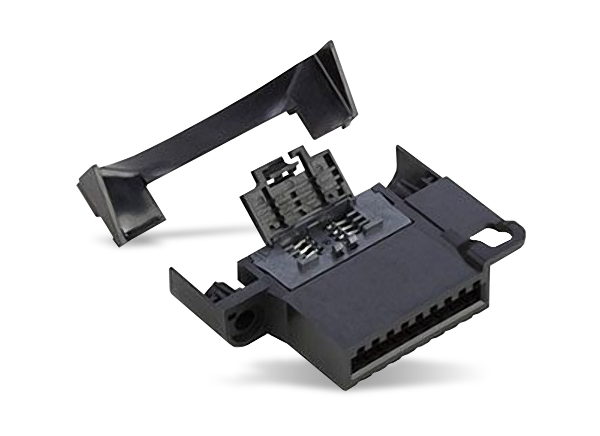

Amphenol Commercial CTW Fan Module Connectors

Amphenol Commercial Card-to-Wire (CTW) Fan Module Connectors feature a flexible design for CTW power applications used in fan modules. The series allows different wire gauges ranging from 28AWG to 22AWG and a maximum current rating of 4A per pin. These connectors are available in standard and smart versions and offer a cost-effective solution with less airflow drop compared to conventional card-to-board fan connector solutions. The CTW standard fan module can be easily assembled with a cover, and the wires can be tidied up. Amphenol Commercial CTW Fan Module Connectors have an optional idle key for fan model identification and optional light pipe-frame orientation (left/right). The smart fan module includes an IC slot that allows the recording of fan operations through IC. The connectors have a provision of an extra pin each on the IC side and on the power side.


  • Compact power connector with a current rating of 4A per pin
  • Idle keys option
  • Flexible design
  • Card-to-wire solution
  • Cost-effectiveness
  • High-temperature housing available in UL 94V-0
  • Light pipe-frame orientation option
  • Smart fan module has IC slot
  • Allows the IC to record fan operations
  • Smart fan module includes additional 1 pin each on IC side and power side
  • Allows detection and first mate, last break (FMLB) options
  • Conforms to EIA and UL certifications


  • Data
    • Servers
    • Storage
  • Communications
    • Switches


  • 4A current rating per contact
  • 10mΩ contact resistance
  • 250VAC voltage rating
  • EIA-364-13, 550gf maximum mating force
  • EIA-364-13, 70gf minimum unmating force
  • 1.5kgf minimum contact retention force
