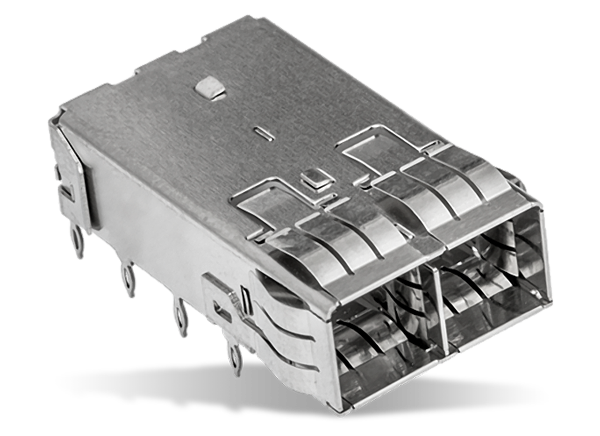

Amphenol Commercial CFP4 Connectors

Amphenol Commercial CFP4 Connectors are ideal for future-generation, multi-hundred Gbps systems. The CFP4 Interconnect System is comprised of insert molding assemblies for top-side contacts and press-fit cage assemblies. The series features a 0.6mm pitch and 56 or 104 positions. Amphenol Commercial CFP4 Connectors are rated for 28Gbps per channel with resonance dampening for improved signal integrity. The CFP4 Series includes a plug connector on the mating interface to improve accuracy and aid in delivering high-speed performance.

Features

  • 0.6mm pitch and 56 or 104 positions
  • Rated for 28Gbps per channel with resonance dampening for improved signal integrity
  • Plug connector on mating interface improves accuracy and aids in achieving high-speed performance

Specifications

  • 3.3VDC per contact operating voltage
  • 1.87A per contact operating current
  • -40°C to +85°C operating temperature range
  • 200 mating cycles durability
  • 60N max. mating force
  • 40g contact normal force
  • 3.00mm (0.118in.) PCB thickness (cage)
  • 50N unmating force (cage)
  • 2 port - 2000N max. insertion force to PCB (cage)
