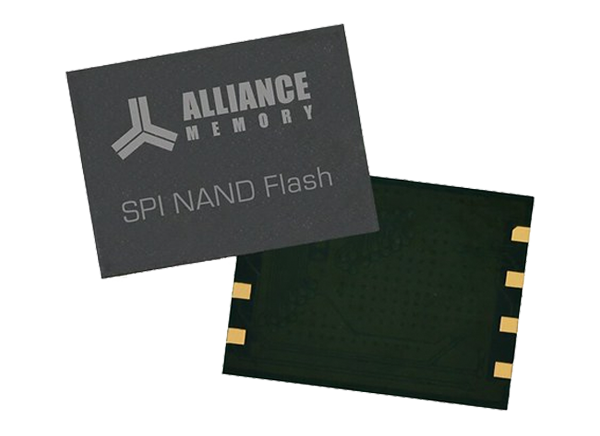

Alliance Memory AS5F Series SPI NAND Flash

Alliance Memory AS5F Series Serial Peripheral Interface (SPI) NAND Flash are memory devices with Single-Level Cell (SLC) NAND of the standard parallel NAND. These devices operate at 1.8V to 3V with densities from 1Gb to 8Gb and high-speed clock frequencies up to 120MHz. The AS5F SPI NAND flash devices offer increased reliability, faster boot-up, and more than 60,000 write and erase cycles in a smaller form factor. These devices provide a low cost and low pin count solution to alternate SPI-NOR in high-density non-volatile memory storage solution for embedded systems. The AS5F SPI NAND flash devices feature 64 pages of one-time programmable protection, where each page consists of a data storage region and a spare area. The data storage region is used to store user-programmed data and the spare area is typically used for memory management and error correction functions.

The AS5F SPI NAND flash devices enhanced performance meet the requirements for multimedia data storage applications and Artificial Intelligence (AI) implementation. These devices are ideal for use in chipsets for Wi-Fi routers, mobile devices, xDSL/xPON technologies, data cards, IP cameras, set-top boxes, digital TVs, smart home devices, and more. The SPI NAND flash devices operate from -40°C to 85°C temperature range and offer 25mA read/program currents and 30mA erase currents. The AS5F flash devices support the standard, dual, and quad SPI operation and are offered in the lead (Pb)- and halogen-free LGA 8-pin package.


  • Single-Level Cell (SLC) NAND flash
  • Operating voltage support:
    • VCC: 3.3V (3.0V to 3.6V)
    • VCC: 1.8V (1.7V to 1.98V)
  • Clock frequency:
    • Up to 120MHz (for VCC 3.3V)
    • Up to 100MHz (for VCC 1.8V)
  • SPI:
    • Standard: SCLK, CS#, SI, SO, WP#, and HOLD#
    • Dual: SCLK, CS#, SIO0, SIO1, WP#, and HOLD#
    • Quad: SCLK, CS#, SIO0, SIO1, SIO2, and SIO3
  • ECC protection:
    • 8bit ECC for each 512bytes + 32bytes
    • 4bit ECC for each 512bytes + 16bytes
  • Package (Pb free and halogen-free):
    • 8-pin LGA-8 (8mm x 6mm x 0.8mm)
  • OTP protection:
    • 64 pages one time programmable
  • Performance (typical):
    • 600µs page program time
    • 70µs for page size 2K page read time
    • 140µs for page size 4K page read time
    • 3ms block erase time
  • Operating current:
    • 25mA read operation current
    • 25mA program operation current
    • 30mA erase operation current
    • 120uA maximum standby current
  • Endurance:
    •  More than 60,000/cycles P/E cycles
  • Temperature:
    • -40°C to 85°C operating temperature range
    • -65°C to 150°C storage temperature range


  • Wi-Fi routers
  • Mobile devices
  • xDSL/xPON technologies
  • Data cards
  • IP cameras
  • Set-top boxes
  • Digital TVs
  • Smart home devices

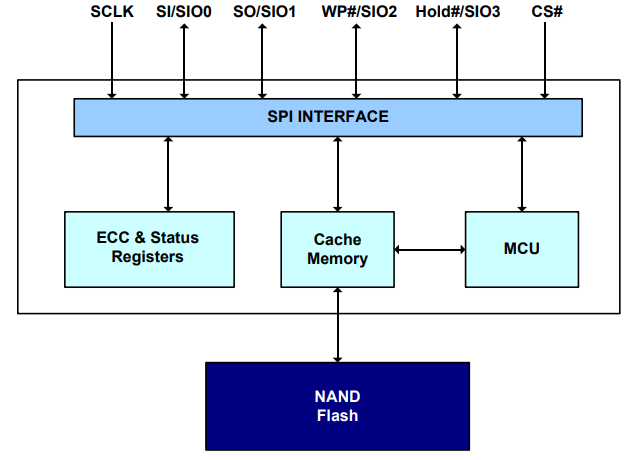

Block Diagram

Block Diagram - Alliance Memory AS5F Series SPI NAND Flash
