Advanced Thermal Solutions DIY Cold Plates

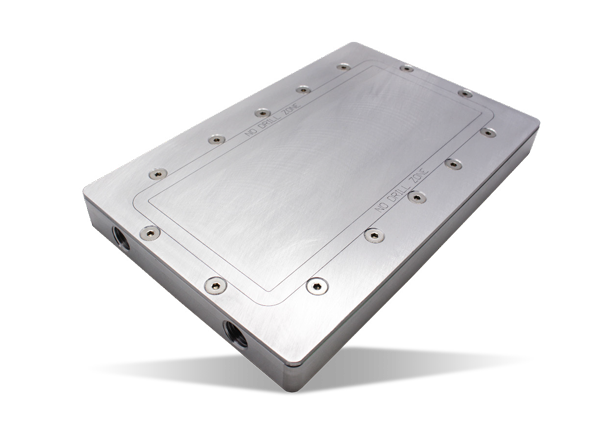

Advanced Thermal Solutions DIY Cold Plates provide engineers with the freedom to drill holes to match the specific connection points of the devices being cooled. The devices being cooled include IGBTs, MOSFETs, or other power electronics. ATS DIY Cold Plates feature an etched no-drill zone to provide a visual guide. The series offers a maximum pressure of 60psi.
Features
- Improved thermal performance compared to similar commercial cold plates
- Compatible with industry-accepted coolants
- ¼NPT threaded input and output
- 60psi maximum pressure
- Aluminum 6061-T6 material
- Leak-free
- Designed for use with standard IGBTs and other power electronics
Specifications
- 4L/minute flow rate
- 0.004°C/W to 0.008°C/W thermal resistance at 1.0GPM
- Dimensions
- 162mm to 202mm length
- 130mm to 172mm width
- 20mm height
Applications
- Automotive
- Uninterruptible power supplies
- Wind turbines
- Photovoltaic inverters
- Power electronics
- Induction heaters
- Motor devices
- Utility vehicles
Drilling Restrictions
