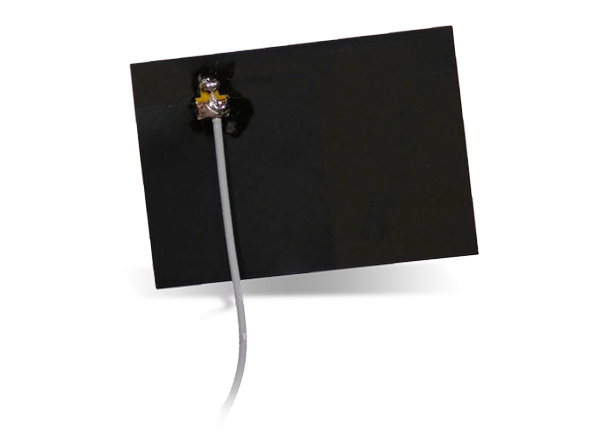

Abracon AFAG4330-SG3 Multi-Band GNSS FPC Antenna

Abracon AFAG4330-SG3 Multi-band Global Navigation Satellite System (GNSS) FPC antenna is specifically designed for GPS/GLONASS/Beidou applications and offers 1550MHz to 1620MHz multiband operating frequency. This FPC antenna offers a low profile flexible structure and comes with RF coax cable and IPEX connector. The Abracon AFAG4330-SG3 Multi-Band GNSS FPS Antenna operates at -40°C to +85°C temperature range and features omnidirectional azimuthal bandwidth.

The AFAG4330-SG3 GNSS FPC antenna facilitates linear polarization with 6.3dBi peak gain. This antenna has a surface testing installation mode and vertical polarization with a power capacity of 3W. This multiband FPC antenna is ideal for applications in the Internet of Things (IoT), GPS/GLONASS/Galileo/Beidou, M2M, remote technology monitoring, geofencing, logistics, surveying, and mapping systems.


  • Mulitband GPS/GLONASS/Beideo/Galileo coverage
  • Low profile
  • Flexible structure
  • Omni-directional pattern
  • Linear polarization
  • RF coax cable
  • IPEX connector


  • 1550MHz to 1620MHz operating frequency
  • ≤2.5 VSWR
  • 43mm x 30mm antenna size
  • 50Ω impedance
  • 6.3dBi peak gain
  • Vertical polarization
  • 3W power capacity
  • Surface-pasting installation mode
  • -40°C to +85°C temperature range

Dimensions (mm)

Mechanical Drawing - Abracon AFAG4330-SG3 Multi-Band GNSS FPC Antenna
