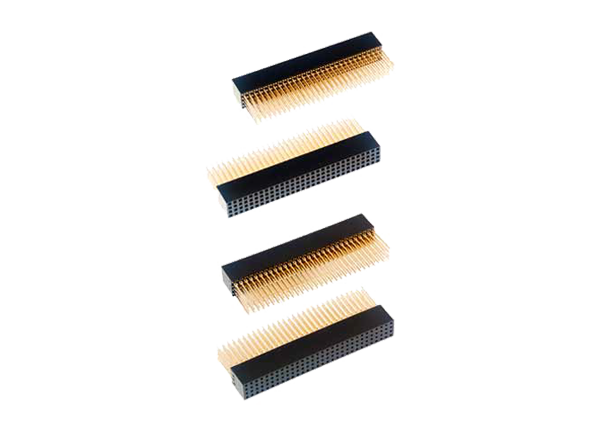

3M PC104 Plus Connectors incorporate the PCI bus within the PCI/104 form factor. The series includes standard PC104 pin-and-socket connectors with rugged and reliable 120-contact male/female headers. The 2.54mm pitch PC104 Plus Connectors are available as primary connectors specified by J3/P3 32-bit non-stack-through module with solder tail termination and the stack-through module with press-fit tail termination.
Connector for PC104 applications with support for PCI bus
2mm pitch connectors for high-density applications
Available in solder tail with a unique self-stacking bus that eliminates the need/cost/bulk of backplanes and card cages
Pin-and-socket connectors; rugged and reliable 120-contact male/female headers
Simple contact design to accommodate many standoff heights
Compact form factor and stacked design to meet tight space requirements of embedded applications
Relaxed bus drive (6 mA) lowers power consumption (to 1-2 watts per module) and minimizes component count.
Stack-through design is more rugged against shock and vibration effects
Industrial control and factory automation
2A current rating
5,000MΩ minimum insulation resistance
20mΩ maximum contact resistance
500VAC withstanding voltage
-40°C to +105°C operating temperature range
Phosphor bronze contacts
UL 94V-0 polyester nylon-6T housings
3M PC104 & PC104 Plus Connectors
Designed to meet the specifications of PC/104 Embedded-PC Modules in Embedded Systems Applications.
